| Citation: | CHEN X M，ZHU Y C，LI L F，et al. Phase-shifted PWM voltage drive strategy of high-speed solenoid valve[J]. Journal of Beijing University of Aeronautics and Astronautics，2025，51（1）：167-174 （in Chinese） doi: 10.13700/j.bh.1001-5965.2022.1018
|

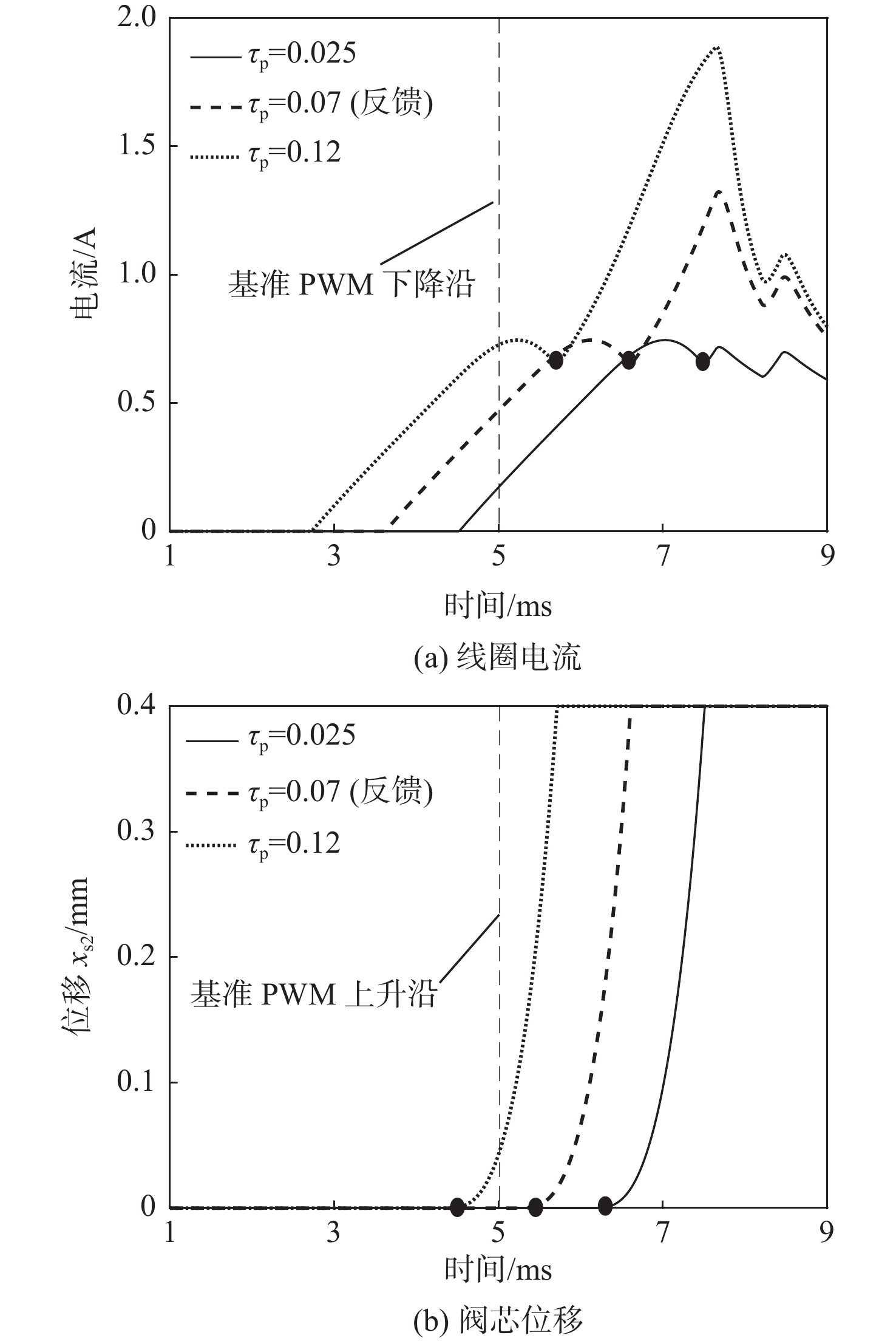

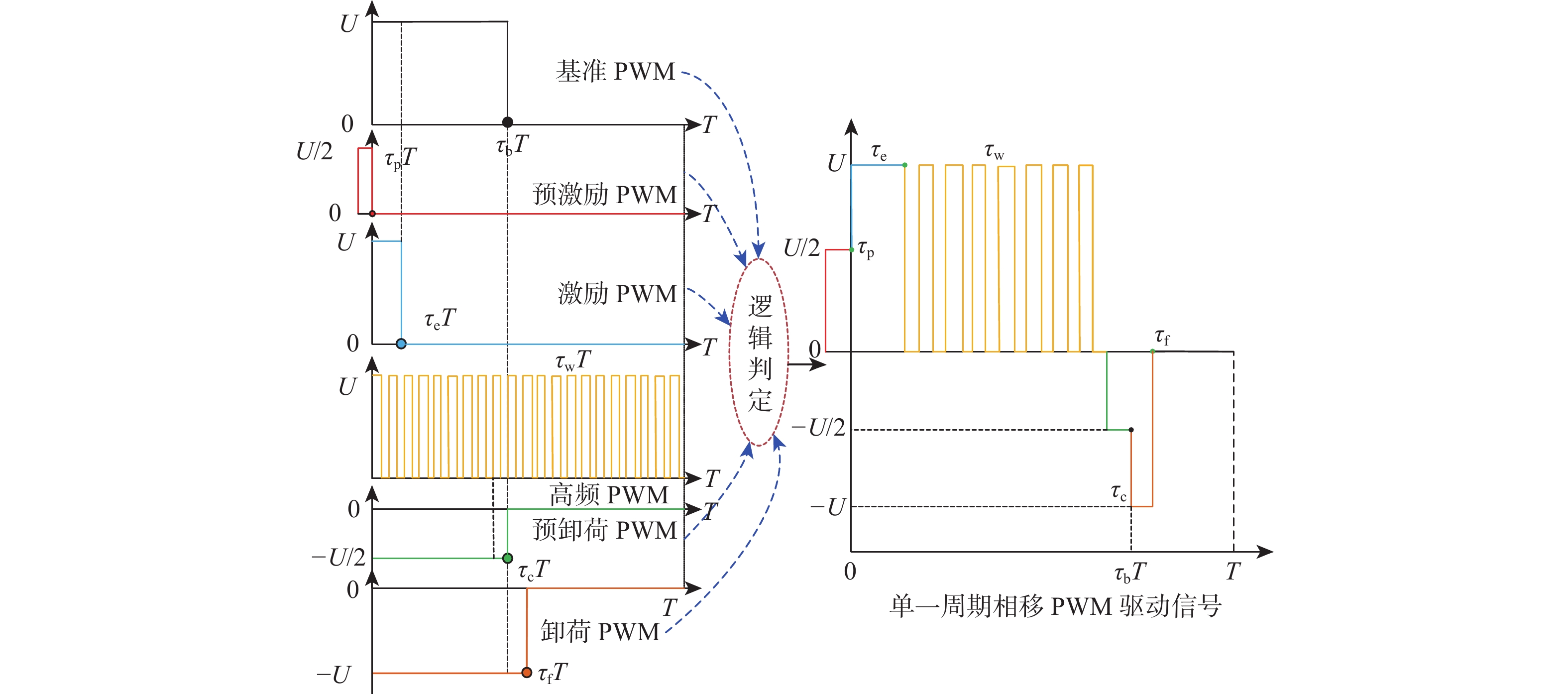

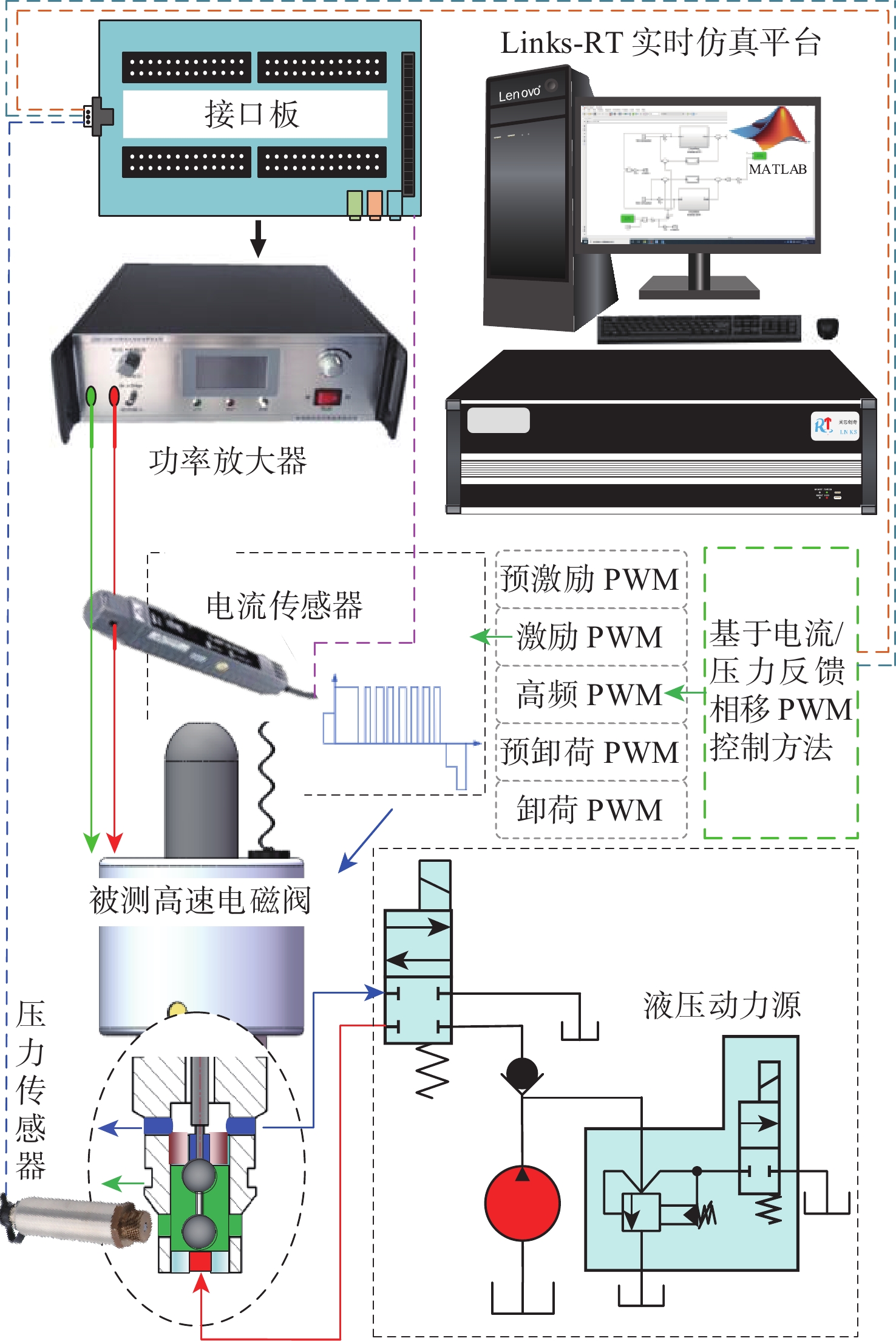

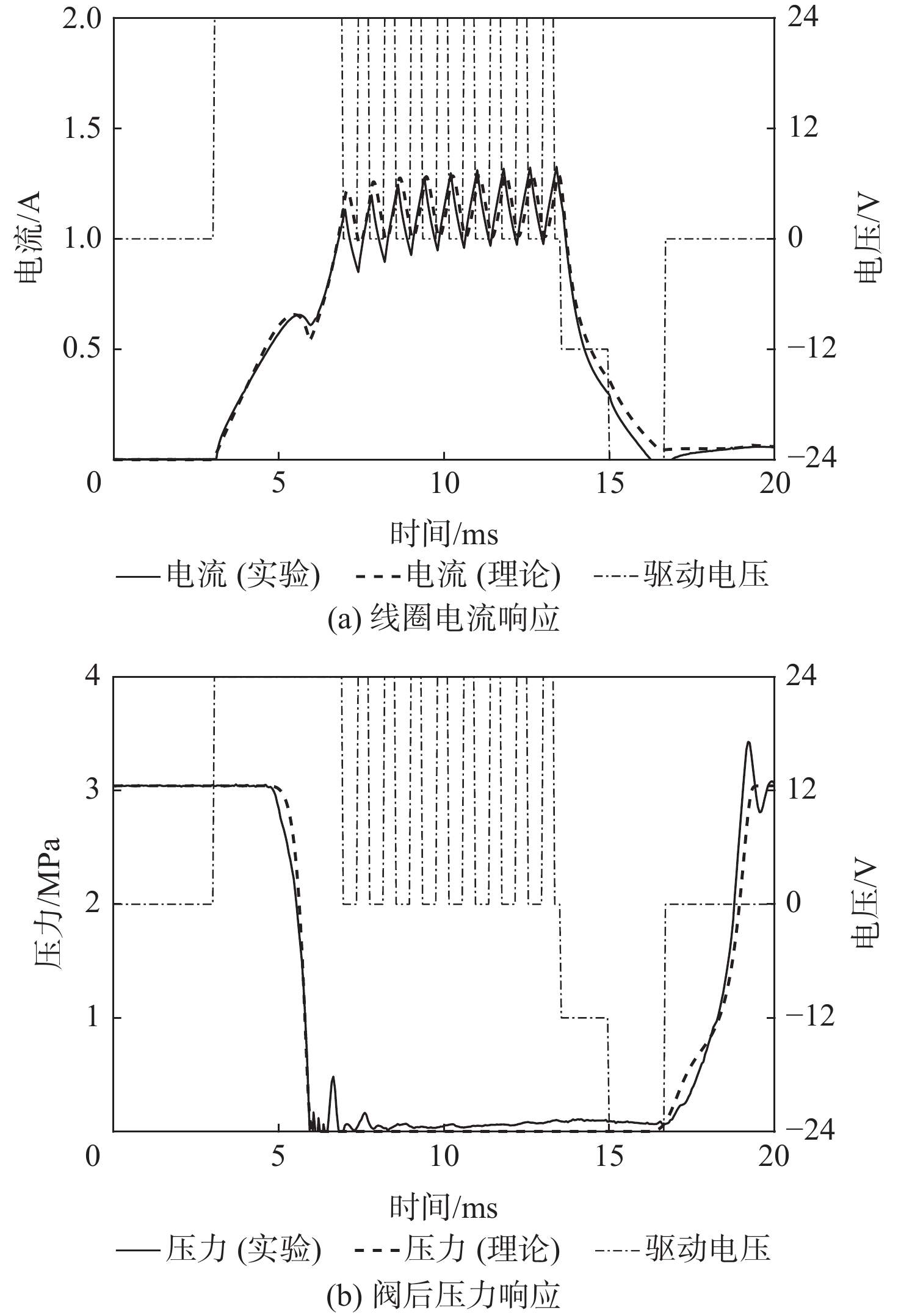

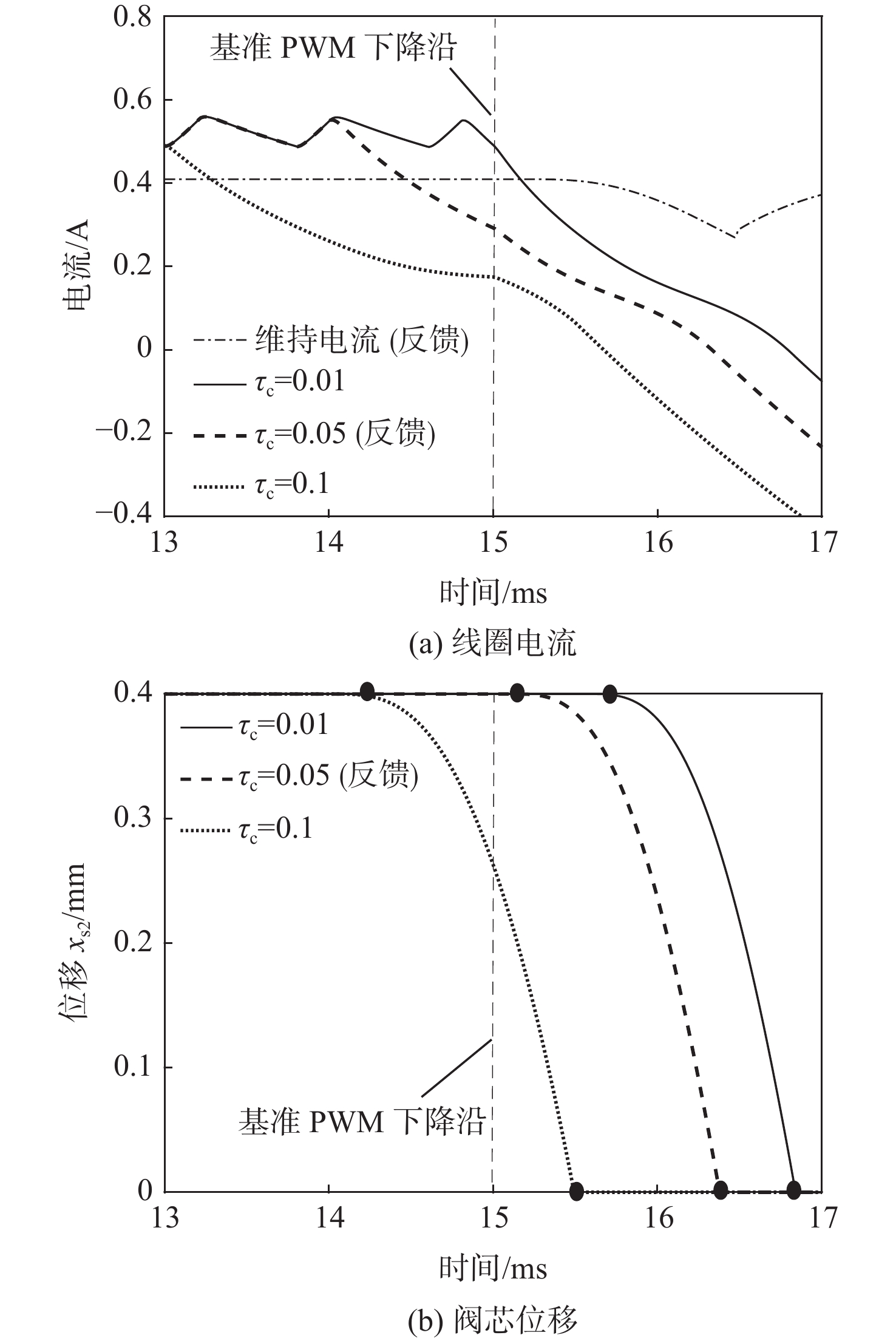

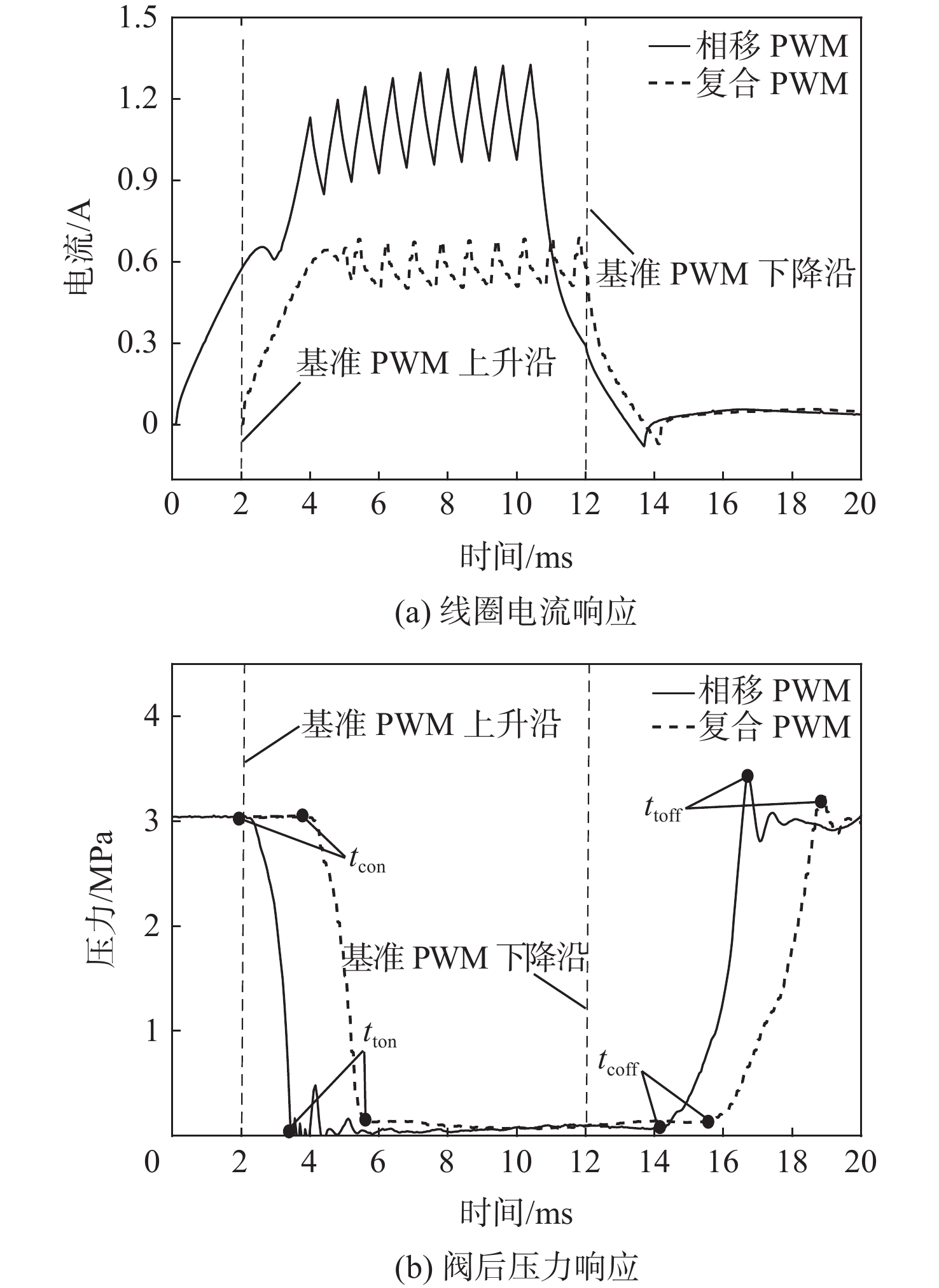

High-speed solenoid valve is the core control element of digital flow technology, and its dynamic response and effective duty cycle range seriously affect the flow control accuracy of the system. To further expand the effective duty cycle range, a phase-shifted pulse width modulation (PWM) voltage drive strategy including reference PWM, pre-excitation PWM, excitation PWM, high-frequency PWM, pre-unloading PWM, and unloading PWM was proposed in this paper. Firstly, the working principle of the phase-shifted PWM voltage drive strategy was given, and the theoretical model of dynamic characteristics of high-speed solenoid valves was established. The simulation analysis and experimental verification of pre-excitation PWM and pre-unloading PWM duty cycle were carried out. The results show that compared with the composite PWM voltage drive strategy, the opening and closing pressure response time of the valve core are reduced by 87% and 37.9%, respectively. When the operating frequency is 100 Hz, the controllable duty cycle of the normal opening and closing of the valve core is extended from 28.5%–77% to 8.5%–81%.
| [1] |
DONKOV V H, ANDERSEN T, LINJAMA M, et al. Digital hydraulic technology for linear actuation: A state of the art review[J]. International Journal of Fluid Power, 2020, 21(2): 263-304.
|
| [2] |
SHANG Y X, LI R J, WU S, et al. A research of high-precision pressure regulation algorithm based on ON/OFF valves for aircraft braking system[J]. IEEE Transactions on Industrial Electronics, 2022, 69(8): 7797-7806. doi: 10.1109/TIE.2021.3108705
|
| [3] |
LEE I Y. Switching response improvement of a high speed on/off solenoid valve by using a 3 power source type valve driving circuit[C]// Proceedings of the IEEE International Conference on Industrial Technology. Piscataway: IEEE Press, 2006: 1823-1828.
|
| [4] |
MESSNER F, SCHEIDL R. Development of a dual supply H-bridge amplifier for high speed actuation of digital hydraulic switching valves[J]. International Journal of Fluid Power, 2019, 20(1): 125-150.
|
| [5] |
ZHAO J H, WANG M L, WANG Z J, et al. Different boost voltage effects on the dynamic response and energy losses of high-speed solenoid valves[J]. Applied Thermal Engineering, 2017, 123: 1494-1503. doi: 10.1016/j.applthermaleng.2017.05.117
|
| [6] |
ZHAO J H, SHI Y, GREKHOV L, et al. Effects of structure parameters on the static electromagnetic characteristics of high speed solenoid valves[J]. International Journal of Applied Electromagnetics and Mechanics, 2017, 55(1): 45-60. doi: 10.3233/JAE-160129
|
| [7] |
ZHAO J H, YUE P F, GREKHOV L, et al. Hold current effects on the power losses of high-speed solenoid valve for common-rail injector[J]. Applied Thermal Engineering, 2018, 128: 1579-1587. doi: 10.1016/j.applthermaleng.2017.09.123
|
| [8] |
孙晓, 栾盈盈, 孙柯, 等. 高速双线圈开关电磁阀控制策略研究[J]. 液压与气动, 2020(2): 175-182. doi: 10.11832/j.issn.1000-4858.2020.02.027
SUN X, LUAN Y Y, SUN K, et al. Control strategy of high-speed on/off solenoid valve with double windings[J]. Chinese Hydraulics & Pneumatics, 2020(2): 175-182(in Chinese). doi: 10.11832/j.issn.1000-4858.2020.02.027
|
| [9] |
钟麒, 张斌, 洪昊岑, 等. 基于电流反馈的高速开关阀3电压激励控制策略[J]. 浙江大学学报(工学版), 2018, 52(1): 8-15. doi: 10.3785/j.issn.1008-973X.2018.01.002
ZHONG Q, ZHANG B, HONG H C, et al. Three power sources excitation control strategy of high speed on/off valve based on current feedback[J]. Journal of Zhejiang University (Engineering Science), 2018, 52(1): 8-15(in Chinese). doi: 10.3785/j.issn.1008-973X.2018.01.002
|
| [10] |
ZHONG Q, ZHANG B, YANG H Y, et al. Performance analysis of a high-speed on/off valve based on an intelligent pulse-width modulation control[J]. Advances in Mechanical Engineering, 2017, 9(11): 168781401773324.
|
| [11] |
GAO Q, ZHU Y C, LUO Z, et al. Investigation on adaptive pulse width modulation control for high speed on/off valve[J]. Journal of Mechanical Science and Technology, 2020, 34(4): 1711-1722. doi: 10.1007/s12206-020-0333-y
|
| [12] |
YUE D L, LI L F, WEI L J, et al. Effects of pulse voltage duration on open-close dynamic characteristics of solenoid screw-in cartridge valves[J]. Processes, 2021, 9(10): 1722. doi: 10.3390/pr9101722
|
| [13] |
LIU Z G, LI L F, YUE D L, et al. Dynamic performance improvement of solenoid screw-in cartridge valve using a new hybrid voltage control[J]. Machines, 2022, 10(2): 106. doi: 10.3390/machines10020106
|
| [14] |
ZHONG Q, WANG X L, XIE G, et al. Analysis of dynamic characteristics and power losses of high speed on/off valve with pre-existing control algorithm[J]. Energies, 2021, 14(16): 4901. doi: 10.3390/en14164901
|
| [15] |
KIM S, MURRENHOFF H. Measurement of effective bulk modulus for hydraulic oil at low pressure[J]. Journal of Fluids Engineering, 2012, 134(2): 021201. doi: 10.1115/1.4005672
|
Figures(9)
