| Citation: | CHEN Y，WANG Z，ZHOU F C. Railway foreign objects tracking detection based on spatial location and feature generalization enhancement[J]. Journal of Beijing University of Aeronautics and Astronautics，2025，51（1）：9-18 （in Chinese） doi: 10.13700/j.bh.1001-5965.2022.0974
|

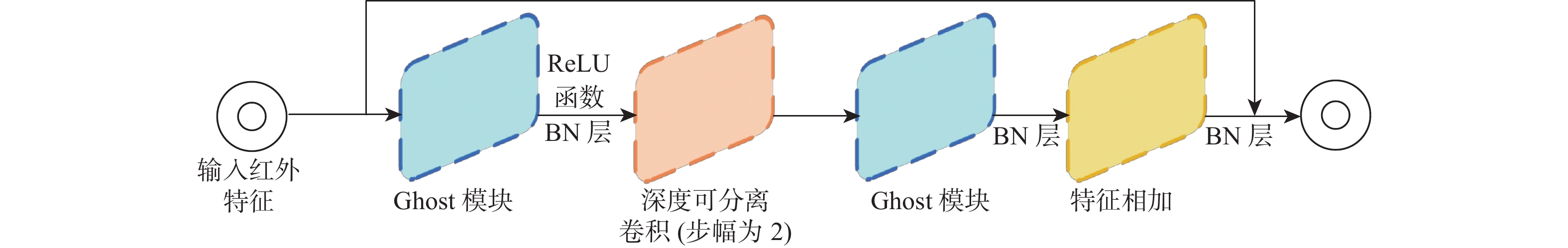

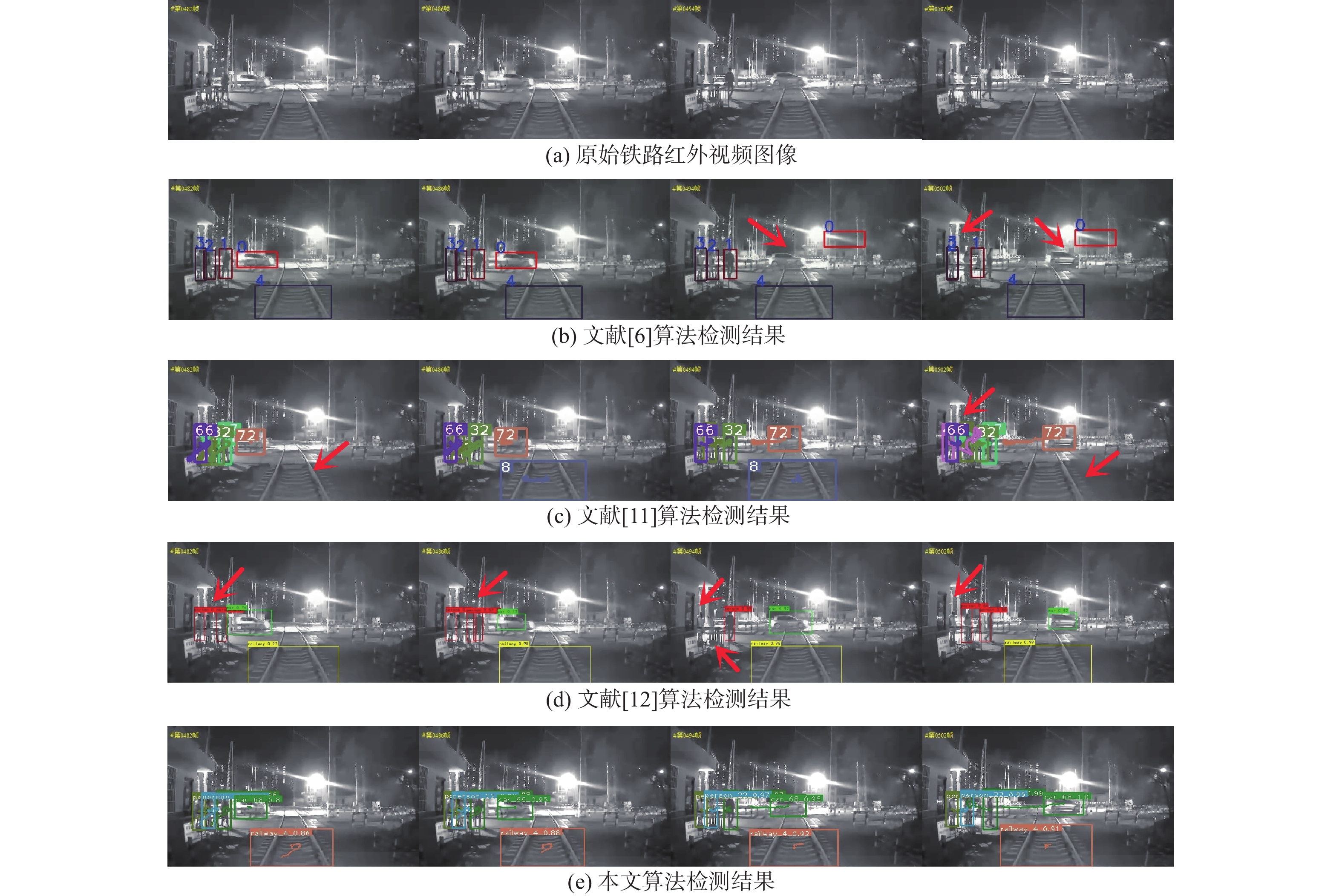

There are factors of complex environments, target occlusion, and others. These factors lead to the lack of detection and low detection accuracy of existing depth learning foreign object tracking algorithms.A railway foreign object tracking technique based on spatial location and feature generalization enhancement is proposed to address the issues with the current deep learning video tracking system. The multi-scale cascaded GhostNet network is used to improve the feature extraction ability of the model. The infrared features are enhanced by spatial location and feature generalization module. The module combined with infrared foreign object spatial location and generalization morphology.The detection accuracy of the network is enhanced. The detection anchor size, target kind, and confidence of infrared railway foreign materials are obtained by using the pyramid prediction network. The DeepSORT tracking algorithm which improved category and confidence combined with Kalman filtering and the Hungarian algorithm is used to track railway foreign objects in an infrared weak light environment. The experimental results show that the tracking precision of the proposed algorithm for infrared targets reaches 83.3%, and the average detection rate of the proposed method is 11.3 frames per second. Compared with the comparison method, the proposed algorithm has good performance for tracking railway foreign objects in infrared weak light scenes.
| [1] |
LI C, XIE Z Y, QIN Y, et al. A multi-scale image and dynamic candidate region-based automatic detection of foreign targets intruding the railway perimeter[J]. Measurement, 2021, 185: 109853. doi: 10.1016/j.measurement.2021.109853
|
| [2] |
LI Y D, LIU Y, DONG H, et al. Intrusion detection of railway clearance from infrared images using generative adversarial networks[J]. Journal of Intelligent & Fuzzy Systems, 2021, 40(3): 3931-3943.
|
| [3] |
WANG Y, LI Y, HAN Q. Vehicle-mounted infrared pedestrian tracking based on scale adaptive kernel correlation filter[J]. IAENG International Journal of Computer Science, 2022, 49(2): 349-356.
|
| [4] |
HU J W, LIU R X, CHEN Z H, et al. Octave convolution-based vehicle detection using frame-difference as network input[J]. The Visual Computer, 2023, 39(4): 1503-1515.
|
| [5] |
艾明晶, 单国志, 刘鹏高, 等. 基于朝向约束和重识别特征的目标轨迹关联方法[J]. 北京亚洲成人在线一二三四五六区学报, 2022, 48(6): 957-967.
AI M J, SHAN G Z, LIU P G, et al. Target trajectory association method based on orientation constraint and re-identification feature[J]. Journal of Beijing University of Aeronautics and Astronautics, 2022, 48(6): 957-967(in Chinese).
|
| [6] |
LI S H, ZHAO L H. A low-cost and fast vehicle detection algorithm with a monocular camera for adaptive driving beam systems[J]. IEEE Access, 2021, 9: 26147-26155. doi: 10.1109/ACCESS.2021.3057862
|
| [7] |
YAO T T, HU J C, ZHANG B, et al. Scale and appearance variation enhanced Siamese network for thermal infrared target tracking[J]. Infrared Physics & Technology, 2021, 117: 103825.
|
| [8] |
LIU F Y, LIU J, WANG L B. Deep learning and infrared thermography for asphalt pavement crack severity classification[J]. Automation in Construction, 2022, 140: 104383. doi: 10.1016/j.autcon.2022.104383
|
| [9] |
XU Y, FAN Q. A lightweight convolutional network for infrared object detection and tracking[J]. Journal of Physics: Conference Series, 2022, 2234(1): 012004. doi: 10.1088/1742-6596/2234/1/012004
|
| [10] |
LI G F, CHEN X, LI M J, et al. One-shot multi-object tracking using CNN-based networks with spatial-channel attention mechanism[J]. Optics & Laser Technology, 2022, 153: 108267.
|
| [11] |
YANG S D, CHEN Z H, MA X M, et al. Real-time high-precision pedestrian tracking: A detection-tracking-correction strategy based on improved SSD and Cascade R-CNN[J]. Journal of Real-Time Image Processing, 2022, 19(2): 287-302. doi: 10.1007/s11554-021-01183-y
|
| [12] |
LEE T Y, JEONG M H, PETER A. Object detection of road facilities using YOLOv3 for high-definition map updates[J]. Sensors and Materials, 2022, 34(1): 251. doi: 10.18494/SAM3732
|
| [13] |
CUI F, NING M W, SHEN J W, et al. Automatic recognition and tracking of highway layer-interface using Faster R-CNN[J]. Journal of Applied Geophysics, 2022, 196: 104477. doi: 10.1016/j.jappgeo.2021.104477
|
| [14] |
SOLIMAN N F, ALABDULKREEM E A, ALGARNI A D, et al. Efficient deep learning modalities for object detection from infrared images[J]. Computers, Materials & Continua, 2022, 72(2): 2545-2563.
|
| [15] |
WU S J, ZHANG K, LI S Y, et al. Aircraft tracking in infrared imagery with adaptive learning and interference suppression[J]. Electronics Letters, 2021, 57(16): 636-638. doi: 10.1049/ell2.12209
|
| [16] |
ZHAO C H, WANG J P, SU N, et al. Low contrast infrared target detection method based on residual thermal backbone network and weighting loss function[J]. Remote Sensing, 2022, 14(1): 177. doi: 10.3390/rs14010177
|
| [17] |
CHANG B R, TSAI H F, HSIEH C W, et al. Chip contour detection based on real-time image sensing and recognition[J]. Sensors and Materials, 2022, 34(3): 1077. doi: 10.18494/SAM3378
|
| [18] |
YANG B, ZHANG Y. Localization and tracking of closely-spaced human targets based on infrared sensors[J]. Infrared Physics & Technology, 2022, 123: 104176. doi: 10.1016/j.infrared.2022.104176
|
| [19] |
JADERBERG M, SIMONYAN K, ZISSERMAN A, et al. Spatial transformer networks[EB/OL]. (2016-02-04)[2022-12-01]. http://arxiv.org/abs/1506.02025.
|
| [20] |
YANG F, LI W, LIANG B B, et al. Multi-stage attention network for video-based person re-identification[J]. IET Computer Vision, 2022, 16(5): 445-455. doi: 10.1049/cvi2.12100
|
| [21] |
CUI Y M, JIANG L H, LIU S Y, et al. Fast and accurate obstacle detection of manipulator in complex human-machine interaction workspace[J]. Measurement Science and Technology, 2022, 33(8): 085402. doi: 10.1088/1361-6501/ac5f2a
|
| [22] |
PAIK C, KIM H J. Improving object detection, multi-object tracking, and re-identification for disaster response drones[EB/OL]. (2022-01-05)[2022-12-01]. http://arxiv.org/abs/2201.01494.
|
| [23] |
KUSHNIR D. Methods and means for small dynamic objects recognition and tracking[J]. Computers, Materials & Continua, 2022, 73(2): 3649-3665.
|
