| Citation: | CAI J，HUANG Y D，LI Q，et al. Simulation and analysis of SPH algorithm for interaction of aircraft tire-wet pavement[J]. Journal of Beijing University of Aeronautics and Astronautics，2025，51（1）：53-62 （in Chinese） doi: 10.13700/j.bh.1001-5965.2022.0954
|

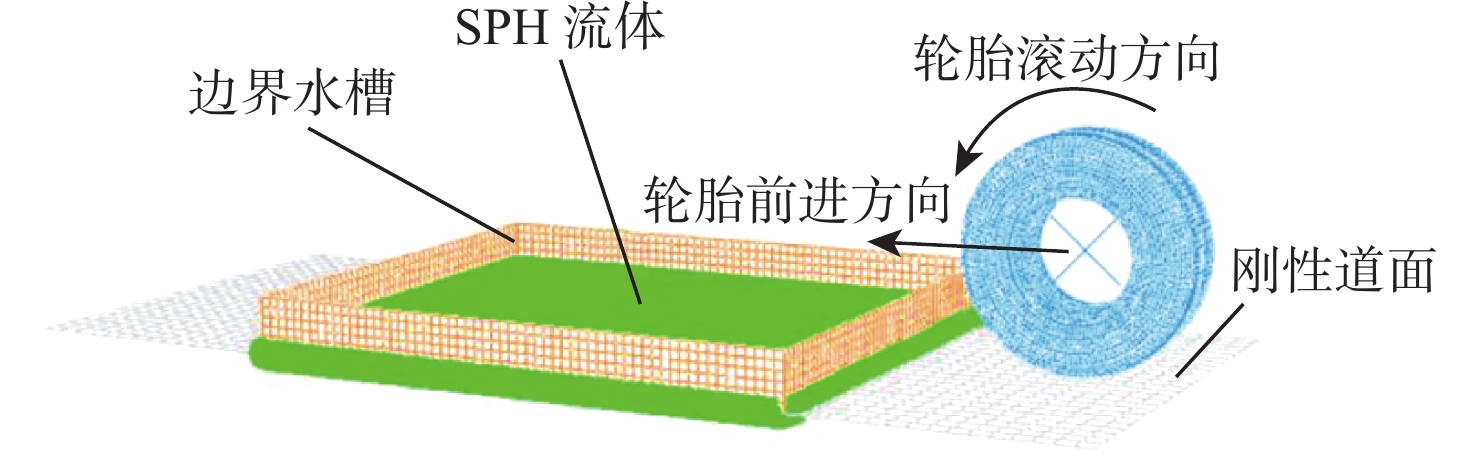

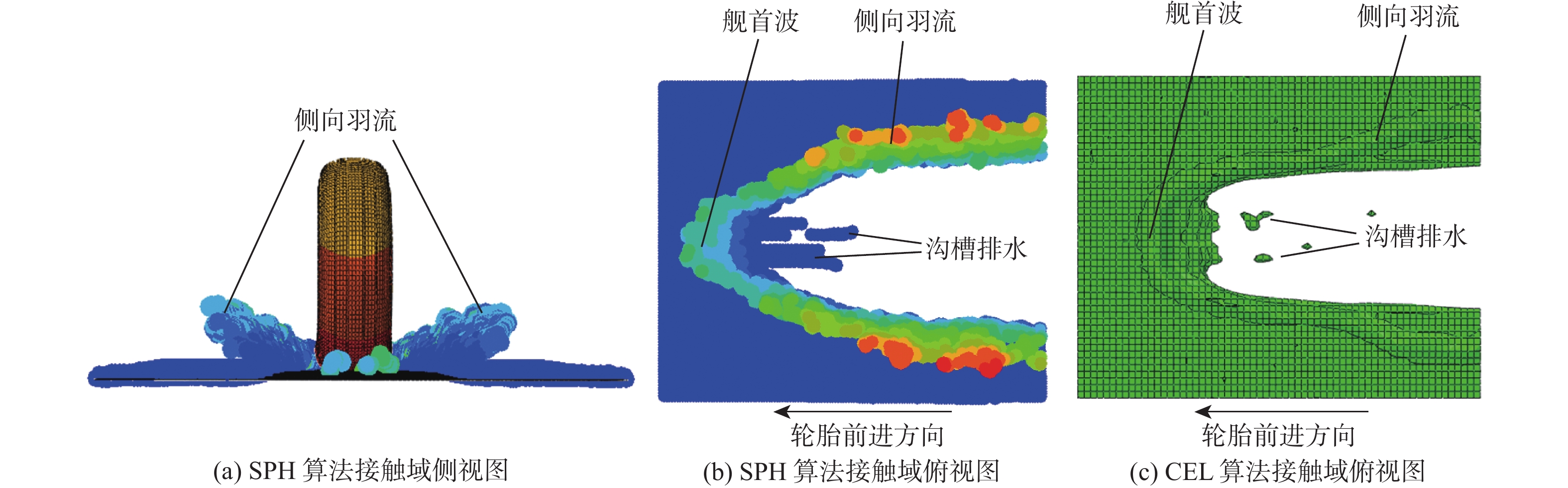

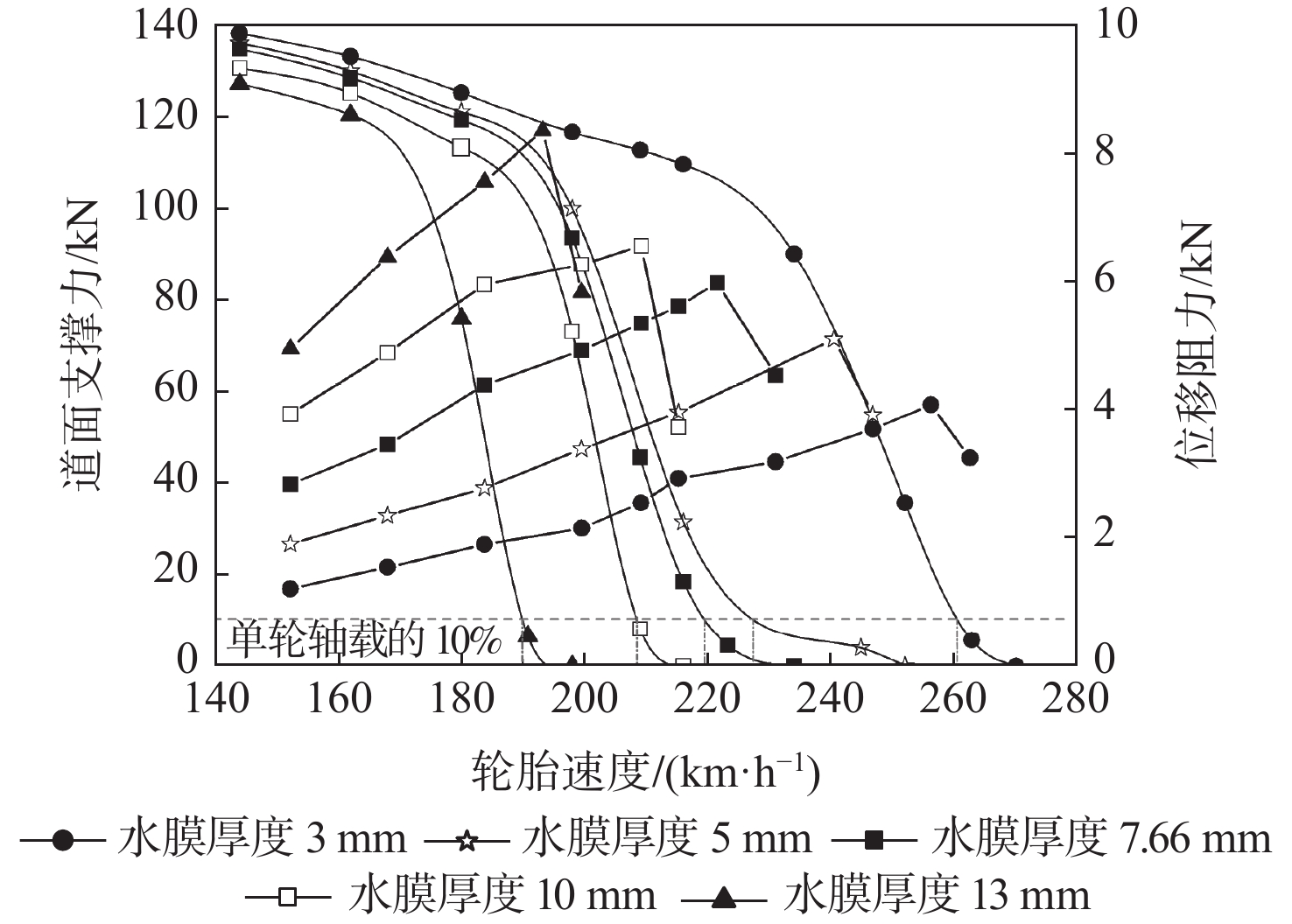

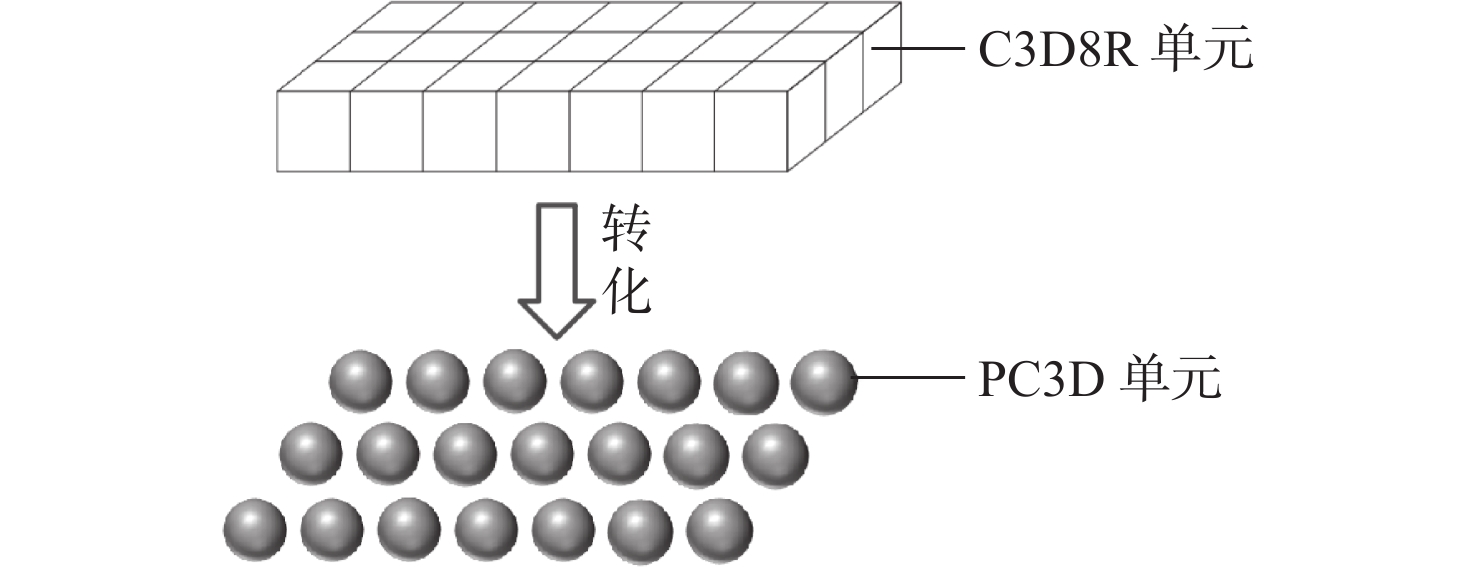

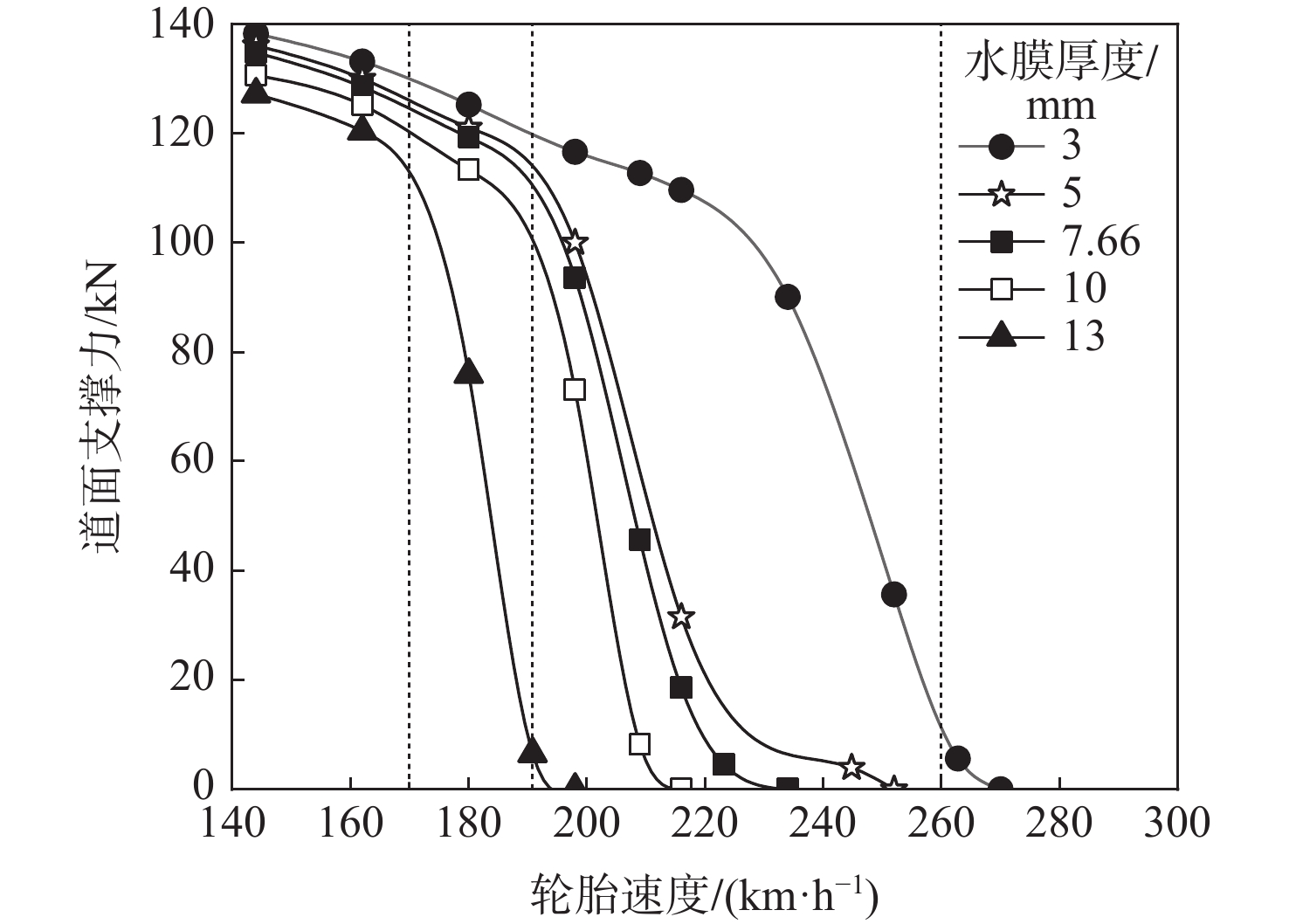

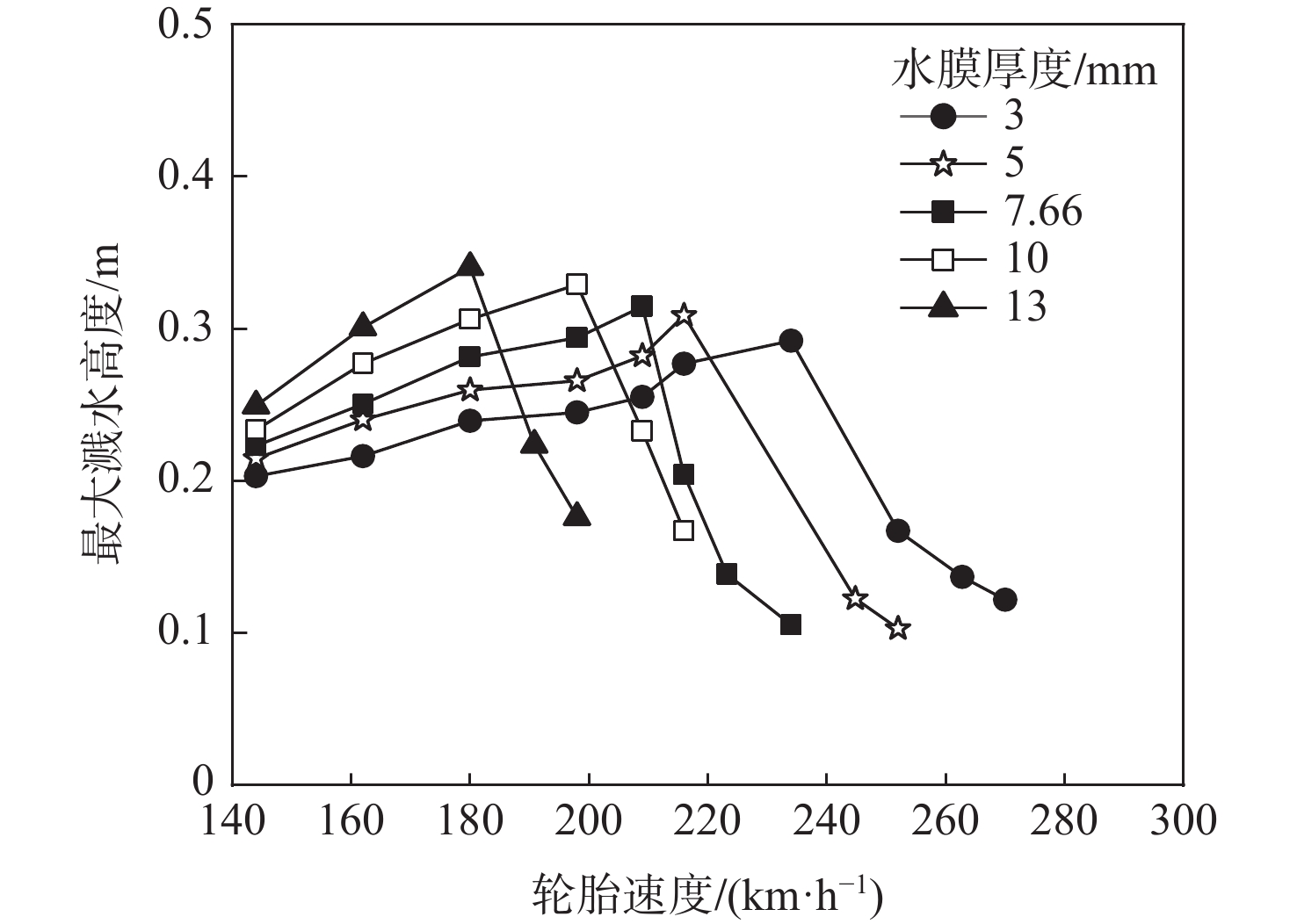

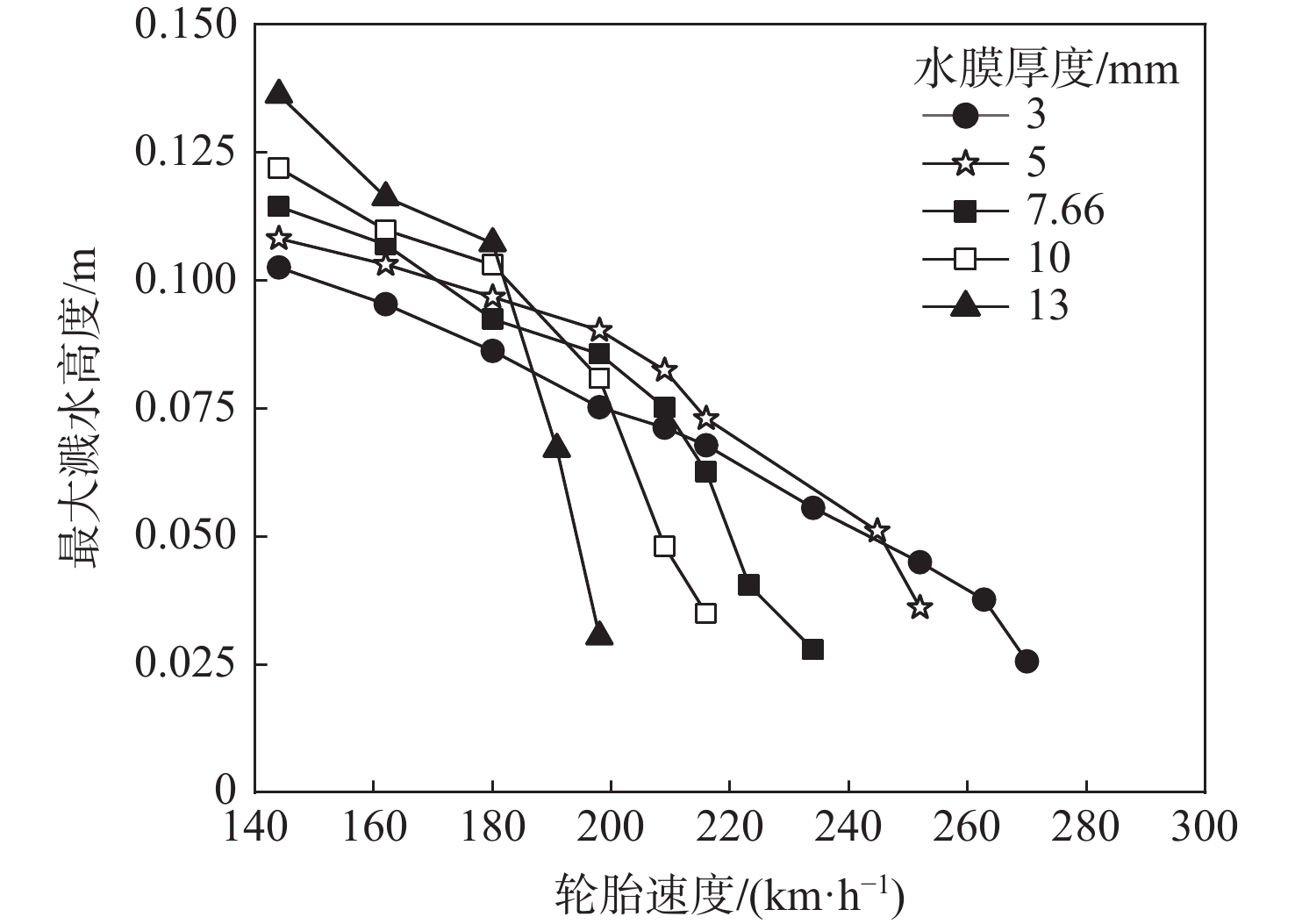

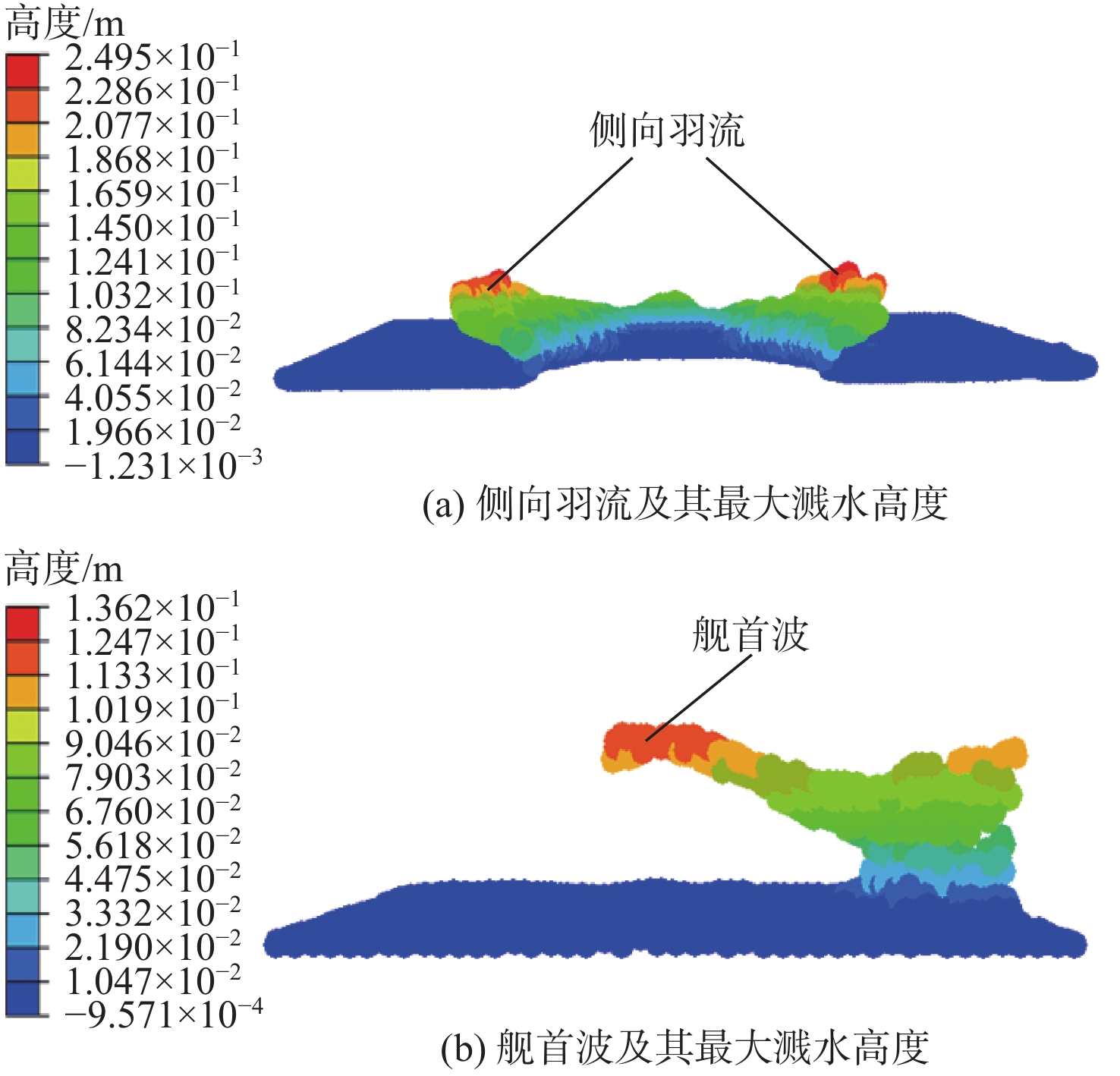

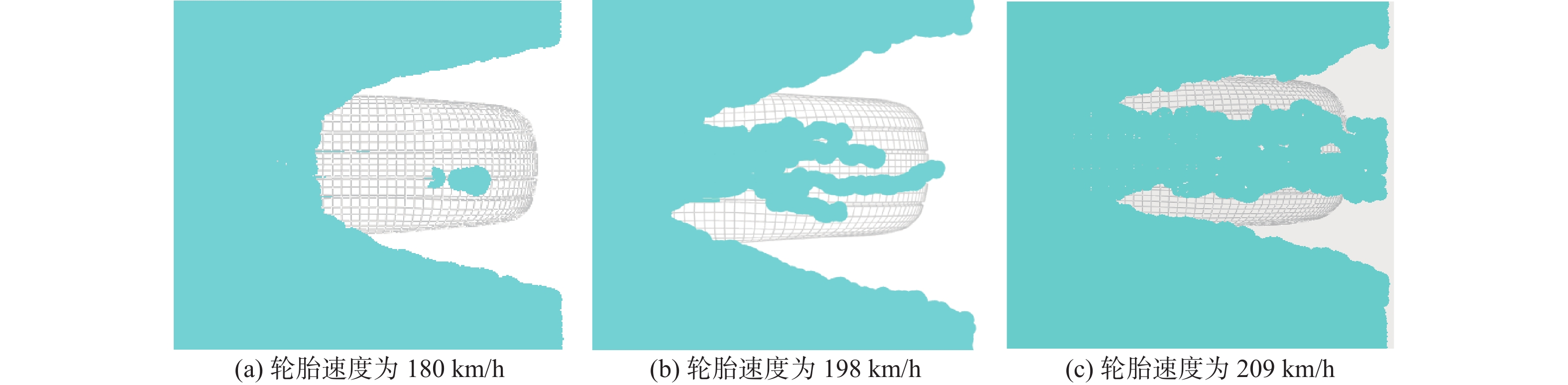

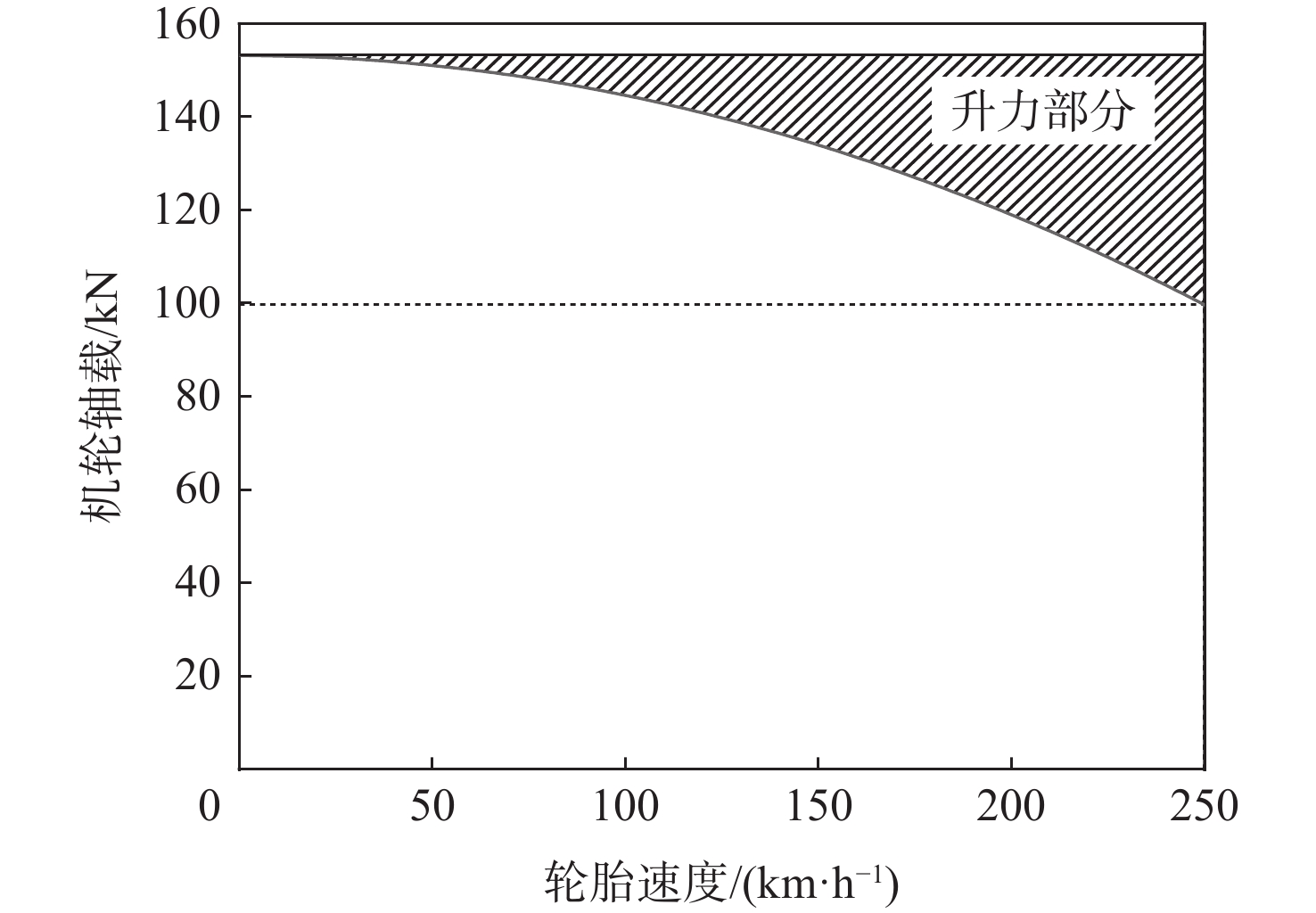

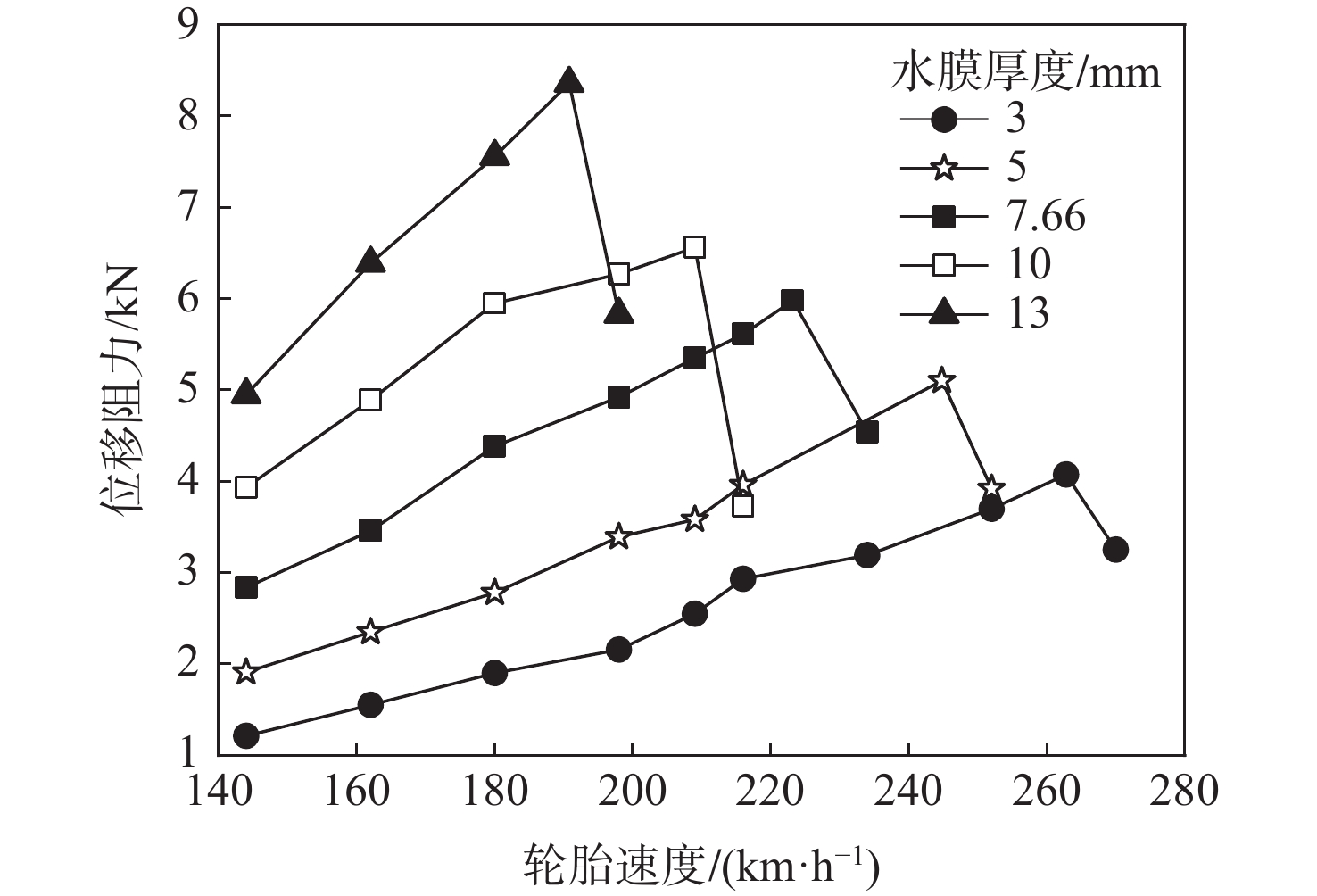

In view of aircraft hydroplaning on wet and slippery pavement, a finite element model of aircraft tire-wet pavement was established by using the smoothed particle hydrodynamics (SPH) algorithm and compared with the coupled Eulerian-Lagrangian (CEL) model, which highlighted the superiority of SPH algorithm. Then, the influence of different tire speeds and water film thickness on the interaction between tire and wet pavement was analyzed. The results show that the difference between the critical hydroplaning speeds obtained by the SPH algorithm model and the CEL model is less than 5%. The fluid characteristics such as bow wave and lateral plume are more obvious. The average computing efficiency of the SPH model is 36.5% higher than that of the CEL model. Then, the SPH model is used to analyze and get the following conclusions: the pavement supporting force decreases gently at first and then rapidly with the increase in speed. When the thickness of accumulated water is 3–13 mm, the speed range of the rapidly decreasing section is 170–260 km/h, which is basically within the landing and taxiing speed range of A320 aircraft, and the prevention of the risk of hydroplaning accidents should be strengthened. The displacement resistance increases at first and then decreases with the increase in speed, and the maximum value is obtained when the tire reaches the critical hydroplaning speed. Then, a method of determining the critical hydroplaning speed by using the maximum value of displacement resistance is put forward. The maximum splashing height of the lateral plume increases at first and then decreases with the increase in speed and reaches a maximum value when approaching the critical hydroplaning speed. The maximum splashing height of the bow wave is lower than that of the lateral plume and decreases with increasing speed. When the critical hydroplaning speed is reached, the bow wave almost disappears. The maximum splashing height values of both splashing characteristics are lower than the minimum ground height of 0.680 m for the A320 aircraft engine and will not affect the engine.
| [1] |
CHO J R, LEE H W, SOHN J S, et al. Numerical investigation of hydroplaning characteristics of three-dimensional patterned tire[J]. European Journal of Mechanics-A, 2006, 25(6): 914-926. doi: 10.1016/j.euromechsol.2006.02.007
|
| [2] |
朱林培. 基于Ls-dyna的轮胎滑水特性研究[J]. 中国制造业信息化, 2009, 38(11): 72-74.
ZHU L P. Simulation of tyre skiding based on Ls-dyna[J]. Machine Design and Manufacturing Engineering, 2009, 38(11): 72-74(in Chinese).
|
| [3] |
DING Y M, WANG H. Computational investigation of hydroplaning risk of wide-base truck tyres on roadway[J]. International Journal of Pavement Engineering, 2020, 21(1): 122-133.
|
| [4] |
TANG T C, ANUPAM K, KASBERGEN C, et al. A finite element study of rain intensity on skid resistance for permeable asphalt concrete mixes[J]. Construction and Building Materials, 2019, 220: 464-475. doi: 10.1016/j.conbuildmat.2019.05.185
|
| [5] |
ZHENG B S, HUANG X M, ZHANG W G, et al. Adhesion characteristics of tire-asphalt pavement interface based on a proposed tire hydroplaning model[J]. Advances in Materials Science and Engineering, 2018, 2018: 5916180. doi: 10.1155/2018/5916180
|
| [6] |
蔡靖, 李岳, 宗一鸣. 湿滑道面飞机轮胎临界滑水速度计算方法比较[J]. 航空学报, 2017, 38(7): 236-247.
CAI J, LI Y, ZONG Y M. Comparasion of prediction methods for critical hydroplaning speed of aircraft tire on wet pavement[J]. Acta Aeronautica et Astronautica Sinica, 2017, 38(7): 236-247(in Chinese).
|
| [7] |
LIU X Y, CAO Q Q, WANG H, et al. Evaluation of vehicle braking performance on wet pavement surface using an integrated tire-vehicle modeling approach[J]. Transportation Research Record: Journal of the Transportation Research Board, 2019, 2673(3): 295-307. doi: 10.1177/0361198119832886
|
| [8] |
LIU X Y, CAO Q Q, CHEN J Y. Simulation of vehicle braking behavior on wet asphalt pavement based on tire hydroplaning and frictional energy dissipation[J]. Journal of Southeast University (English Edition), 2018, 34(4): 500-507.
|
| [9] |
CHO J R, LEE H W, YOO W S. A wet-road braking distance estimate utilizing the hydroplaning analysis of patterned tire[J]. International Journal for Numerical Methods in Engineering, 2007, 69(7): 1423-1445. doi: 10.1002/nme.1813
|
| [10] |
ZHU X Y, PANG Y F, YANG J, et al. Numerical analysis of hydroplaning behaviour by using a tire-water-film-runway model[J]. International Journal of Pavement Engineering, 2022, 23(3): 784-800. doi: 10.1080/10298436.2020.1774587
|
| [11] |
ZHU X Y, YANG Y, ZHAO H D, et al. Effects of surface texture deterioration and wet surface conditions on asphalt runway skid resistance[J]. Tribology International, 2021, 153: 106589. doi: 10.1016/j.triboint.2020.106589
|
| [12] |
ZHAO Y, LI H N, FU X, et al. Seismic analysis of a large LNG tank considering the effect of liquid volume[J]. Shock and Vibration, 2020, 10(6): 8889055.
|
| [13] |
ZEHETNER C, SCHRGENHUMER M, HAMMELMÜLLER F, et al. Comparison of coupled Euler-Lagrange and smoothed particle hydrodynamics in fluid-structure interaction[C]//Proceedings of the 6th International Conference on Computational Methods for Coupled Problems in Science and Engineering. Barcelona: INT Center Numerical Methods Engineering, 2015: 1080-1088.
|
| [14] |
KELLER M C, BRAUN S, WIETH L, et al. Smoothed particle hydrodynamics simulation of oil-jet gear interaction[J]. Journal of Tribology, 2019, 141(7): 071703. doi: 10.1115/1.4043640
|
| [15] |
BUI H H, SAKO K, FUKAGAWA R. Numerical simulation of soil-water interaction using smoothed particle hydrodynamics (SPH) method[J]. Journal of Terramechanics, 2007, 44(5): 339-346. doi: 10.1016/j.jterra.2007.10.003
|
| [16] |
VIOLEAU D, ROGERS B D. Smoothed particle hydrodynamics (SPH) for free-surface flows: Past, present and future[J]. Journal of Hydraulic Research, 2016, 54(1): 1-26. doi: 10.1080/00221686.2015.1119209
|
| [17] |
FWA T F, ANUPAM K, ONG G P. Relative effectiveness of grooves in tire and pavement for reducing vehicle hydroplaning risk[J]. Transportation Research Record: Journal of the Transportation Research Board, 2010, 2155(1): 73-81. doi: 10.3141/2155-08
|
| [18] |
中国民用航空局. 航空承运人湿跑道和污染跑道运行管理规定: AC-121-FS-33R1[S]. 北京: 中国民用航空局, 2021.
Civil Aviation Administration of China. Regulations on the operation management of wet runways and polluted runways for air carriers: AC-121-FS-33R1[S]. Beijing: Civil Aviation Administration of China, 2021(in Chinese).
|
| [19] |
许诤. 考虑道面平整度的飞机轮胎滑水安全问题研究[D]. 天津: 中国民航大学, 2019.
XU Z. Study on water skiing safety of aircraft tires considering pavement smoothness[D]. Tianjin: Civil Aviation University of China, 2019(in Chinese).
|
| [20] |
宗一鸣. 湿滑道面条件下轮胎力学行为与飞机着陆安全问题研究[D]. 天津: 中国民航大学, 2017.
ZONG Y M. Research on tire mechanical behavior and aircraft landing safety under wet road surface conditions[D]. Tianjin: Civil Aviation University of China, 2017(in Chinese).
|
| [21] |
李岳, 蔡靖, 宗一鸣. 湿滑道面飞机轮胎临界滑水速度数值仿真[J]. 交通运输工程学报, 2017, 17(5): 90-101. doi: 10.3969/j.issn.1671-1637.2017.05.009
LI Y, CAI J, ZONG Y M. Numerical simulation of critical hydroplaning speed of aircraft tire under wet pavement condition[J]. Journal of Traffic and Transportation Engineering, 2017, 17(5): 90-101(in Chinese). doi: 10.3969/j.issn.1671-1637.2017.05.009
|
| [22] |
ZHAO K B, LIU P Q, QU Q L, et al. Numerical simulation of aircraft tire-generated spray and engine ingestion on flooded runways[J]. Journal of Aircraft, 2017, 54(5): 1840-1848. doi: 10.2514/1.C034164
|
| [23] |
ZHANG X P, XU F, REN X Q, et al. Consideration on aircraft tire spray when running on wet runways[J]. Chinese Journal of Aeronautics, 2020, 33(2): 520-528. doi: 10.1016/j.cja.2019.08.013
|
| [24] |
GUAN X S, XU F, HU M Q, et al. Numerical simulation of water spray generated by aircraft multi-wheels[J]. International Journal of Computational Fluid Dynamics, 2021, 35(1-2): 93-105. doi: 10.1080/10618562.2020.1847276
|
| [25] |
闫珅. 大型飞机污染跑道起降性能和飞行操作适航标准研究[D]. 南京: 南京亚洲成人在线一二三四五六区, 2019.
YAN S. Study on take-off and landing performance and airworthiness standard of flight operation of large aircraft polluted runway[D]. Nanjing: Nanjing University of Aeronautics and Astronautics, 2019(in Chinese).
|
| [26] |
倪明. 大型客机污染跑道起降性能适航审定方法研究[D]. 南京: 南京亚洲成人在线一二三四五六区, 2018.
NI M. Research on airworthiness certification method of take-off and landing performance of large passenger aircraft polluted runway[D]. Nanjing: Nanjing University of Aeronautics and Astronautics, 2018(in Chinese).
|
