两开关隔离型直流变换器拓扑自生成方法

李虹; 梁一迪; 尹成东; 郑琼林; 张波

doi:10.13700/j.bh.1001-5965.2023.0483

两开关隔离型直流变换器拓扑自生成方法

doi: 10.13700/j.bh.1001-5965.2023.0483

李虹^{1, 2, ,},
梁一迪²,
尹成东²,
郑琼林²,
张波³

1.
浙江大学电气工程学院，杭州 310058
2.
北京交通大学电气工程学院，北京 100044
3.
华南理工大学电力学院，广州 510006

基金项目:

国家杰出青年科学基金(52325704)；国家自然科学基金重点项目(52237008)

详细信息

通讯作者:
E-mail：hli@bjtu.edu.cn

中图分类号: TM461；O157.5
计量
- 文章访问数: 535
- HTML全文浏览量: 92
- PDF下载量: 71
- 被引次数: 0
出版历程
- 收稿日期: 2023-07-27
- 录用日期: 2023-10-06
- 网络出版日期: 2023-12-18
- 整期出版日期: 2025-05-31

Topology self-generating method of isolated DC-DC converters with two switches

1.
College of Electrical Engineering，Zhejiang University，Hangzhou 310058，China
2.
School of Electrical Engineering，Beijing Jiaotong University，Beijing 100044，China
3.
School of Electric Power Engineering，South China University of Technology，Guangzhou 510006，China

Funds:

National Science Fund for Distinguished Young Scholars (52325704); Key Program of National Natural Science Foundation of China (52237008)

More Information

Corresponding author: E-mail：hli@bjtu.edu.cn

摘要

摘要:
随着新能源发电、电气化交通等领域的兴起，电能变换的需求日益多样化，需要更多的隔离型直流变换器(即隔离型DC-DC变换器)拓扑。为解决基于人工经验生成拓扑的偶然性和无法进行拓扑优化的问题，提出一种基于顶点素数度的两开关隔离型DC-DC变换器拓扑自生成方法。提出双顶点对变压器模型，利用图论将电路转换为图；将构成电路的元器件的数量和种类作为输入条件，利用所提的拓扑自生成方法遍历生成具有给定元器件的所有可用隔离型DC-DC变换器拓扑。以隔离型T¹S²D²L¹C¹DC-DC变换器为例，即变换器电路由1个变压器、2个开关管、2个二极管、1个电感、1个电容、1个输入直流源和1个输出直流源组成，可一次生成87种可用正激变换器和97种反激变换器拓扑，以正激变换器为例，根据电压增益可分为25种升压正激变换器、24种降压正激变换器、32种升降压正激变换器和6种等压正激变换器。所提方法实现了基于计算机编程快速、量化生成新的隔离型DC-DC变换器拓扑，为工程应用提供了拓扑库，为拓扑优化选型提供了条件。
- 隔离型DC-DC变换器 /
- 两开关 /
- 拓扑 /
- 自生成 /
- 顶点素数度
Abstract:
More isolated DC-DC converter topologies are required as a result of the growing need for different power conversion brought on by the development of new energy generation and electrified transportation. To overcome the randomness and lack of topology optimization in generating topologies based on human experience, this paper proposes a vertex prime degree-based topology self-generation method of the isolated DC-DC converters with two switches. Firstly, the two-vertex-pair transformer model is proposed, and the circuits are converted into graphs using graph theory. Secondly, the numbers and the types of components used to form the circuit are regarded as the input condition of the method. Finally, the proposed self-generation method is utilized to traverse and generate all available isolated DC-DC converter topologies with the given components. An input DC source, an output DC source, two switches, two diodes, one transformer, one inductor, and one capacitor, namely, the isolated T¹S²D²L¹C¹ DC-DC converters are examples of converter circuits. The 87 forward converters and 97 flyback converters can be generated. Taking the 87 forward converters as examples, they can be further categorized based on voltage gain into 25-boost forward converters, 24-buck forward converters, 32 buck-boost forward converters, and 6 constant voltage forward converters. Therefore, this method enables rapid and quantitative generation of new isolated DC-DC converter topologies through computer programming. It provides a topology library for engineering applications and establishes conditions for topology optimization and selection.
- isolated DC-DC converter /
- two switches /
- topology /
- self-generation /
- vertex prime degree

HTML全文

图 1 变换器拓扑结构和图形化表示

Figure 1. Topology structure and graphical representation of converter

下载: 全尺寸图片幻灯片

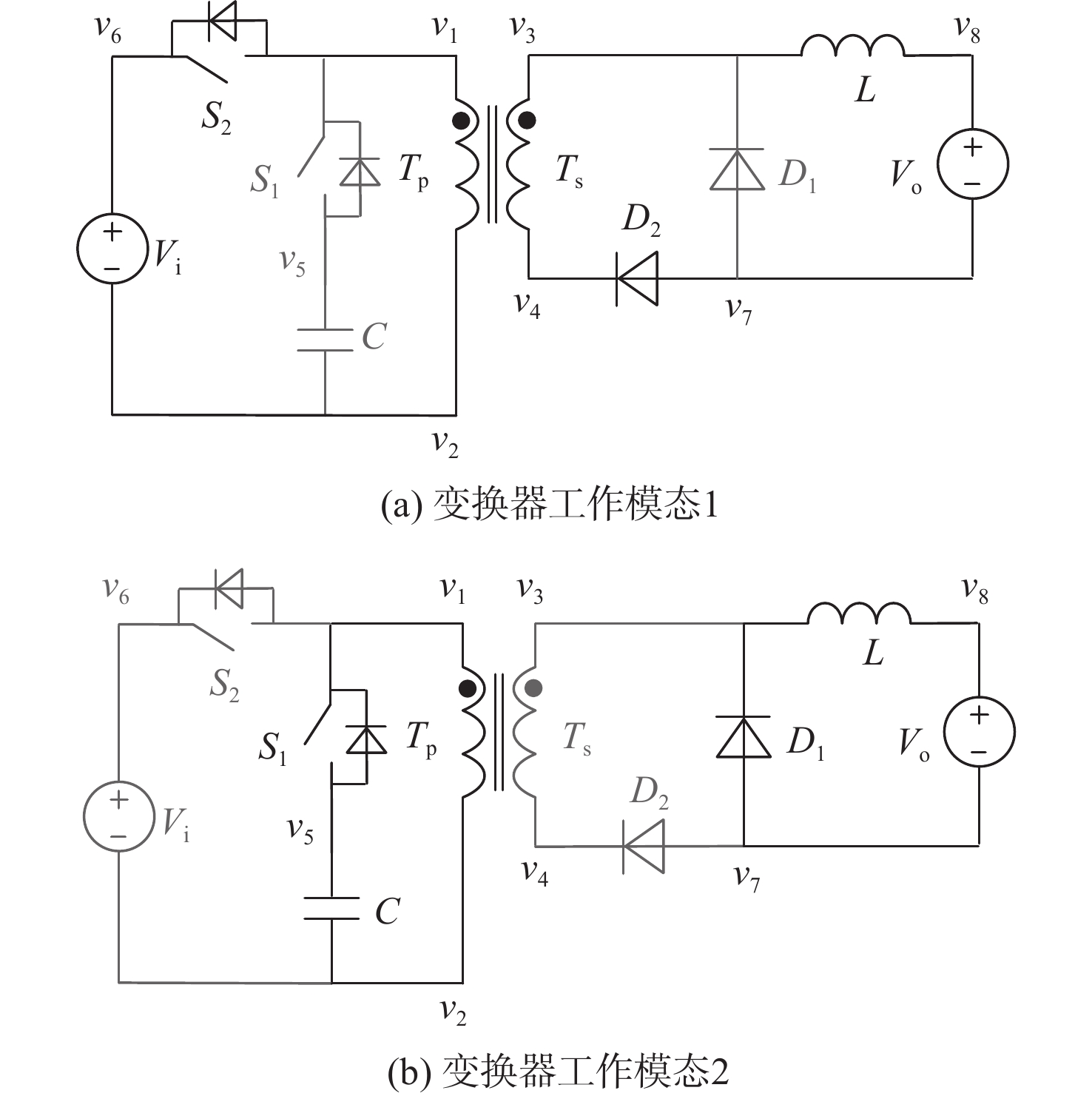

图 2 变换器工作模态

Figure 2. Converter working modes

下载: 全尺寸图片幻灯片

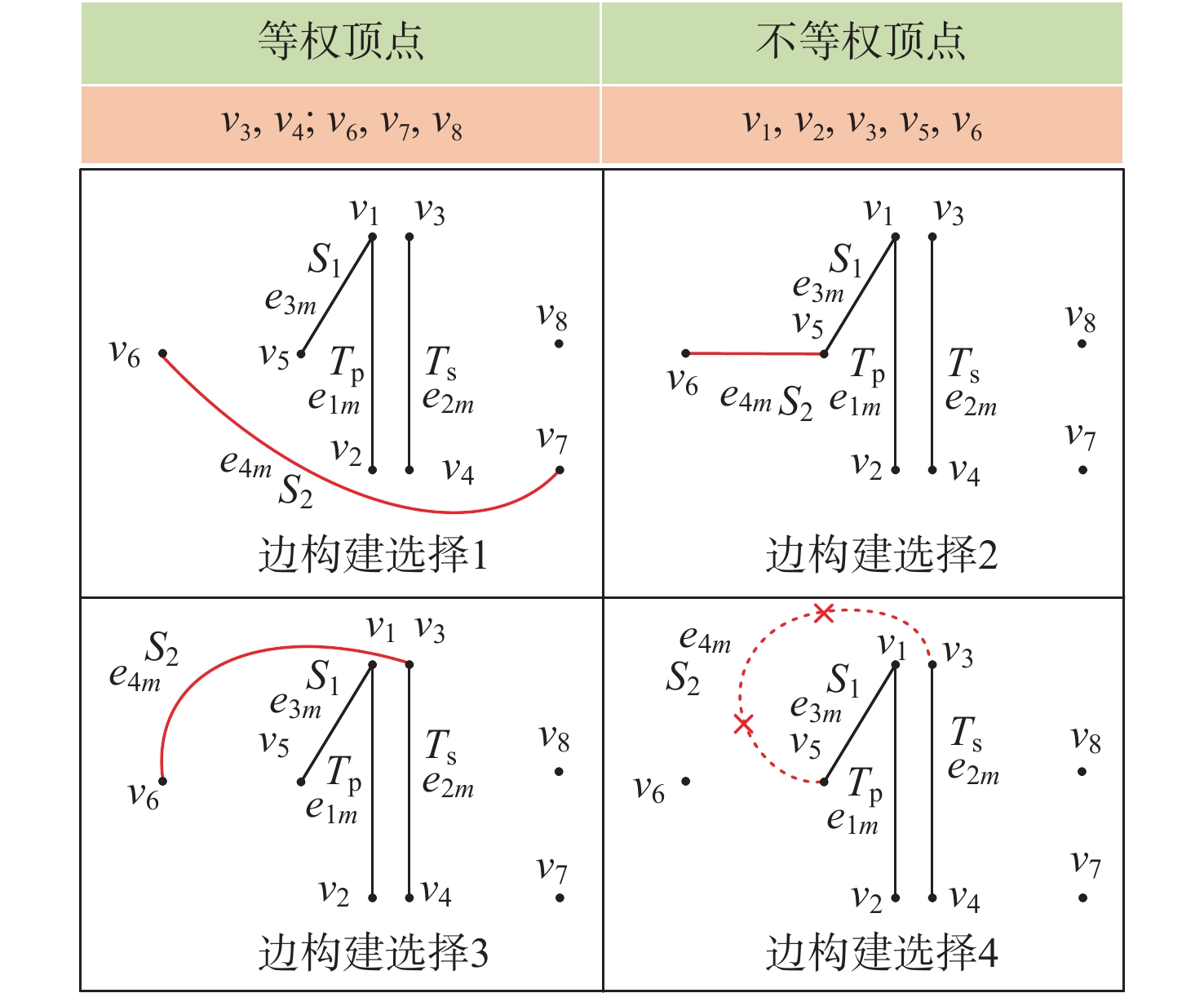

图 3 隔离型DC-DC变换器边构建选择

Figure 3. Selection of edge construction for isolated DC-DC converters

下载: 全尺寸图片幻灯片

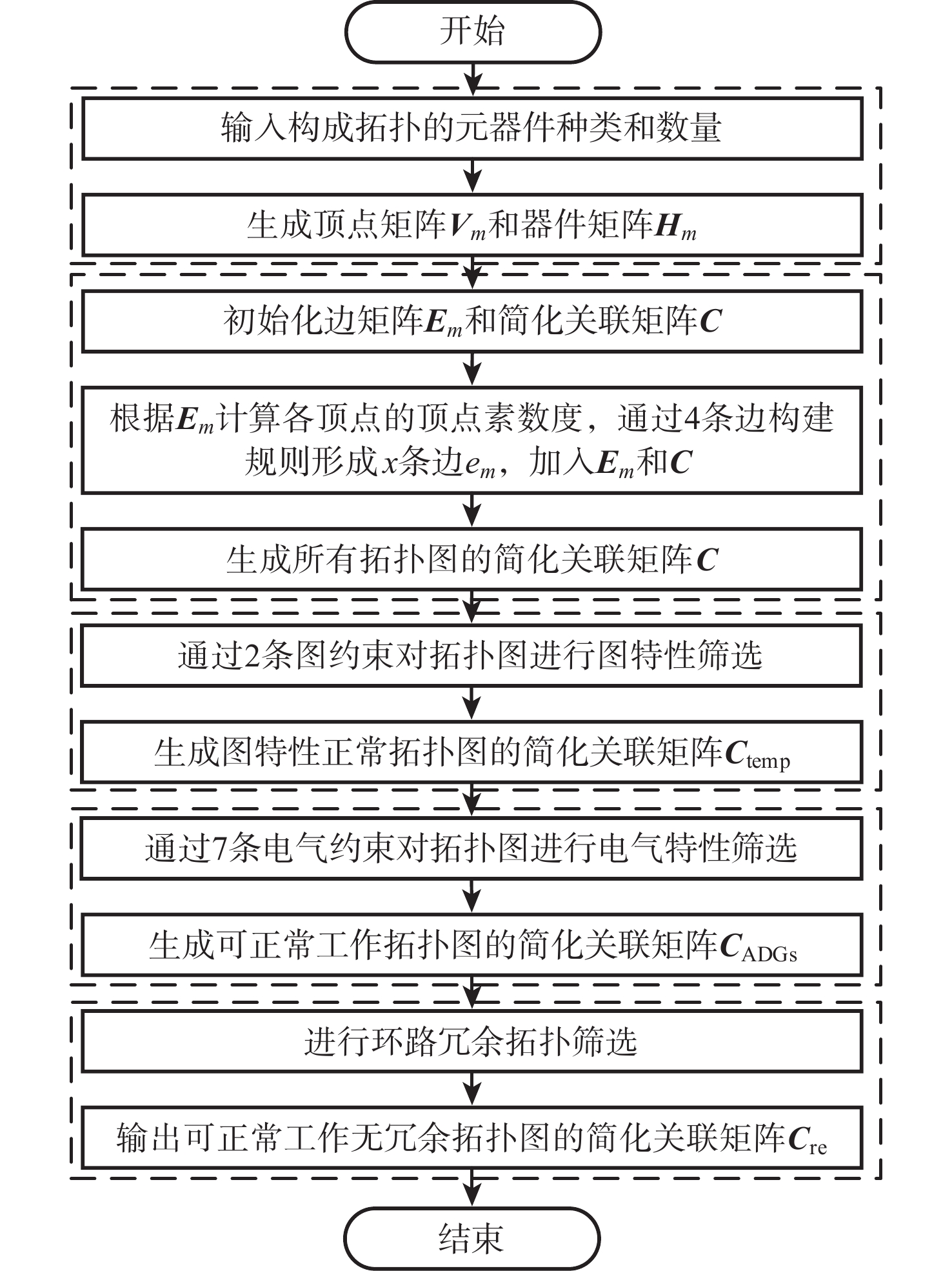

图 4 隔离型DC-DC变换器拓扑自生成方法

Figure 4. The topology self-generation method of the isolated DC-DC converters

下载: 全尺寸图片幻灯片

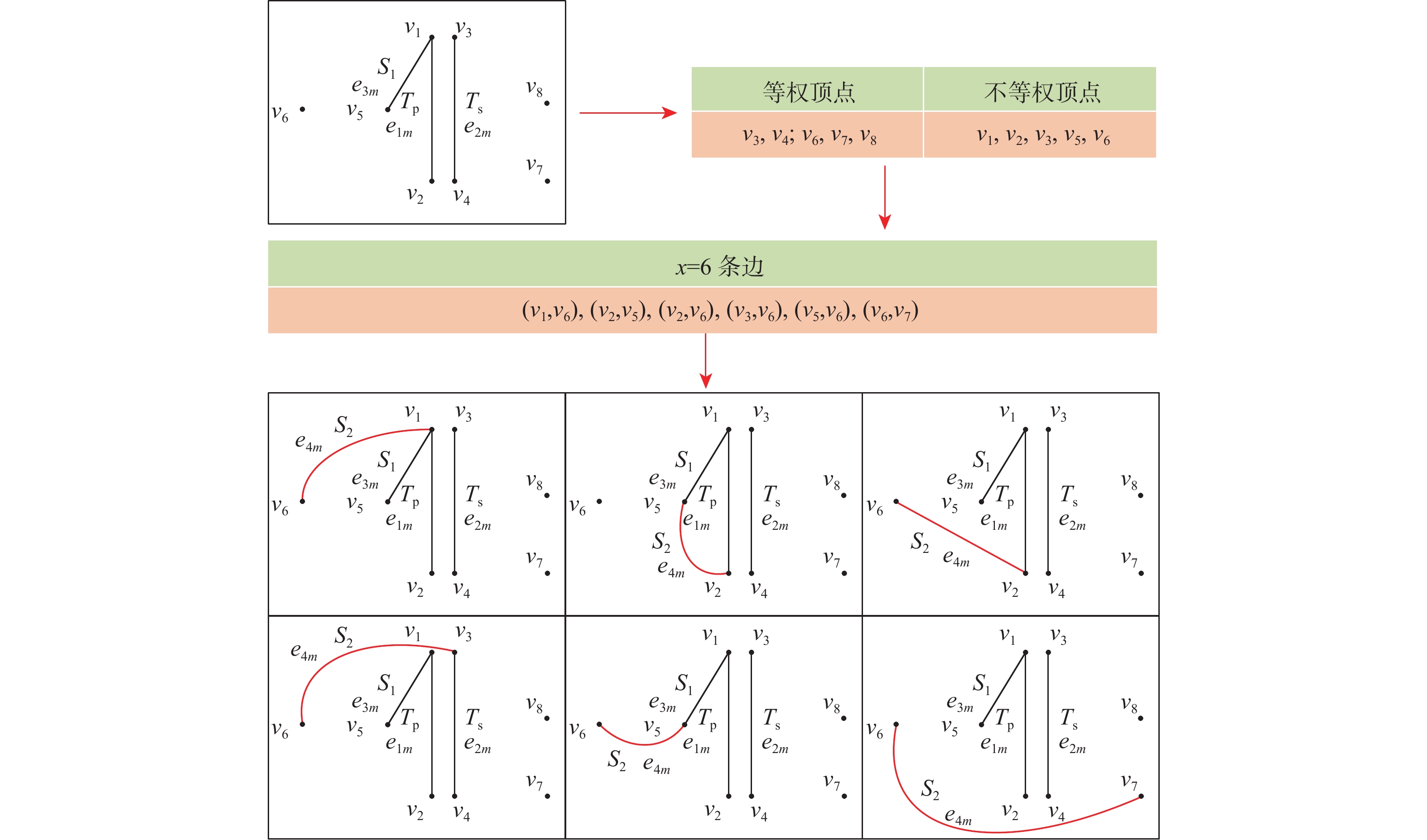

图 5 构建第4条边e_4m的过程

Figure 5. Process of building the fourth edge e_4m

下载: 全尺寸图片幻灯片

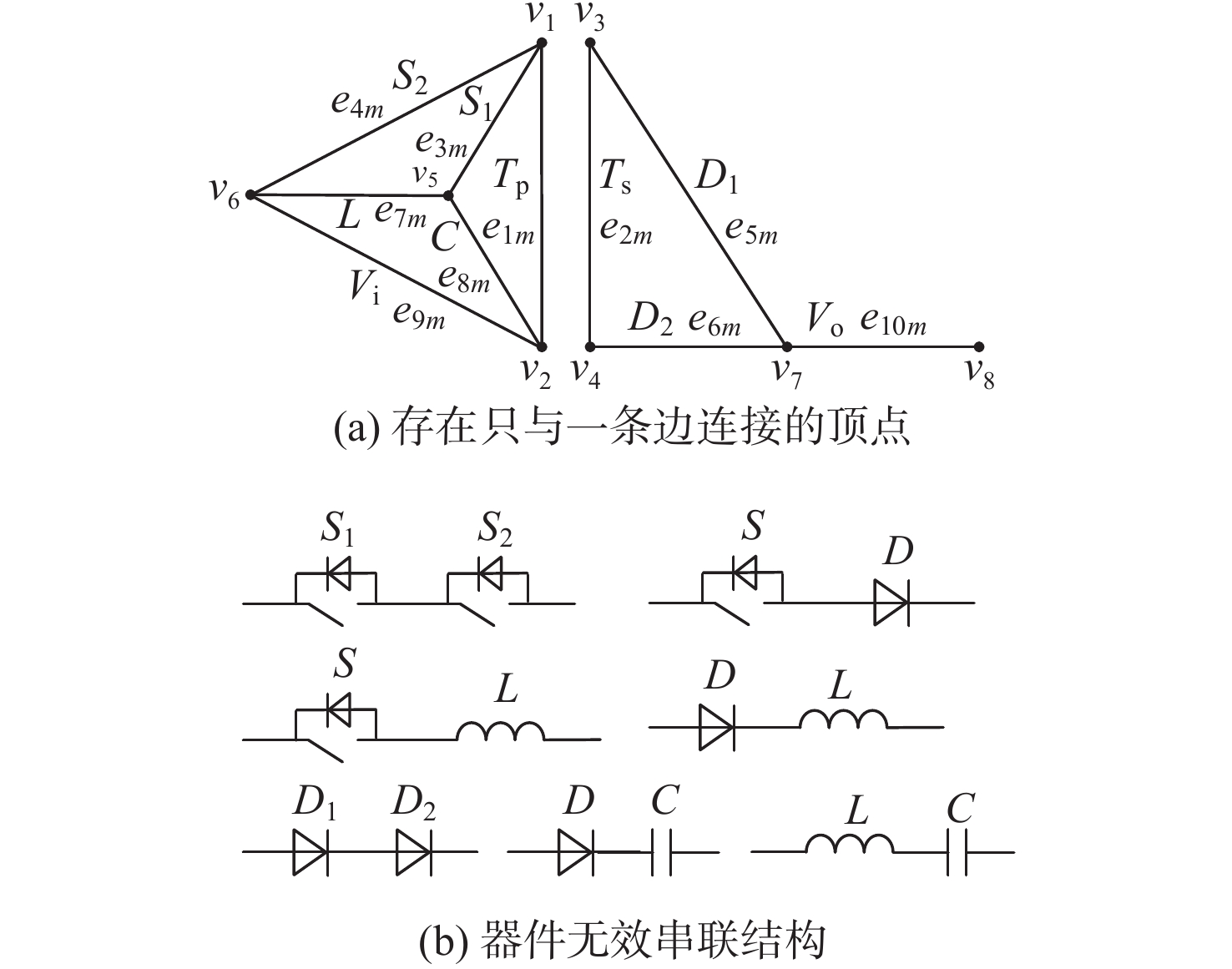

图 6 无效图

Figure 6. Invalid diagram

下载: 全尺寸图片幻灯片

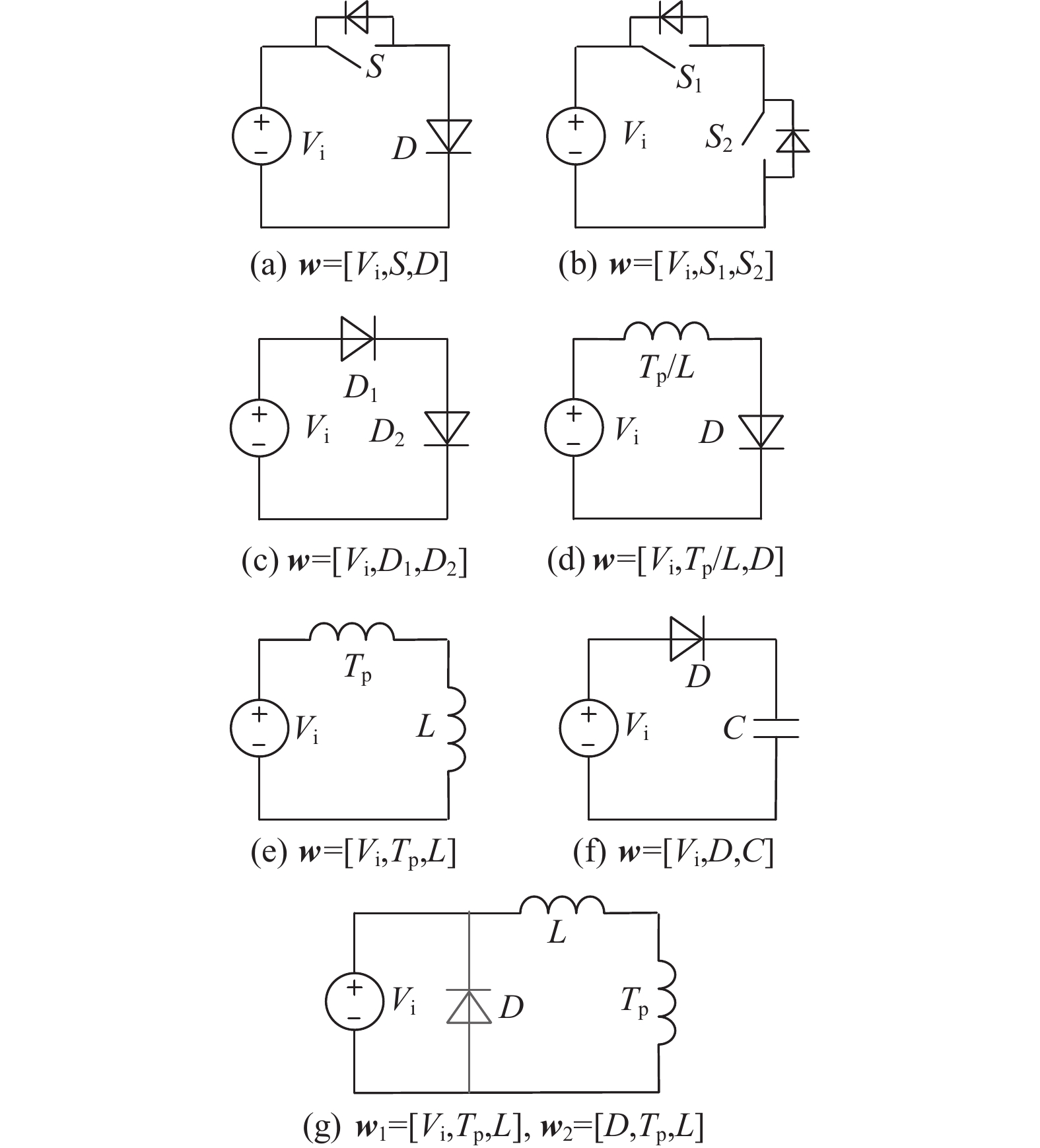

图 7 无效环路

Figure 7. Invalid loops

下载: 全尺寸图片幻灯片

图 8 2个工作模态下的隔离型T¹S²D²L¹C¹ DC-DC变换器

Figure 8. Isolated T¹S²D²L¹C¹ DC-DC converters with two working modes

下载: 全尺寸图片幻灯片

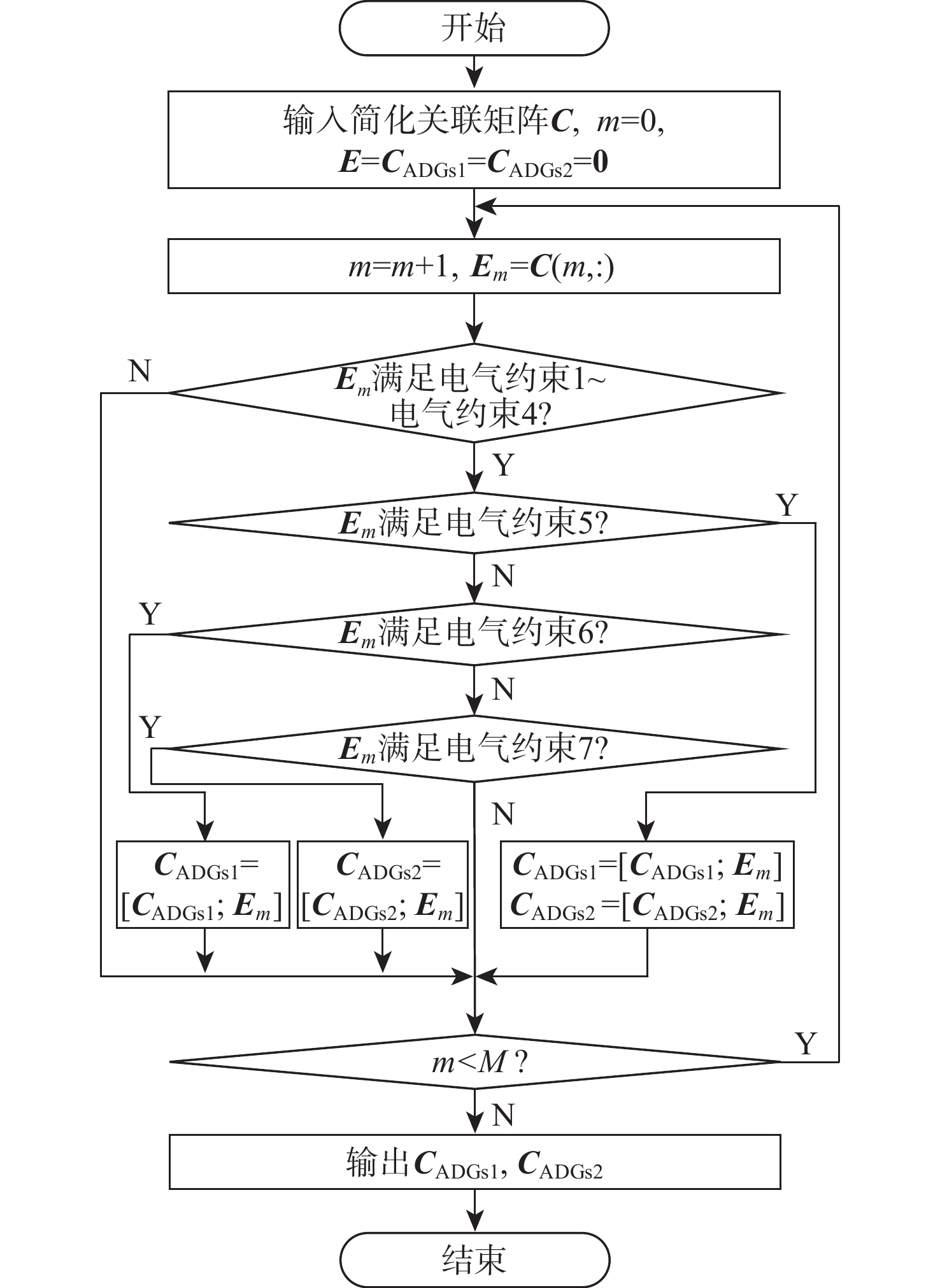

图 9 电气约束筛选流程

Figure 9. Flow of electrical constraint screening

下载: 全尺寸图片幻灯片

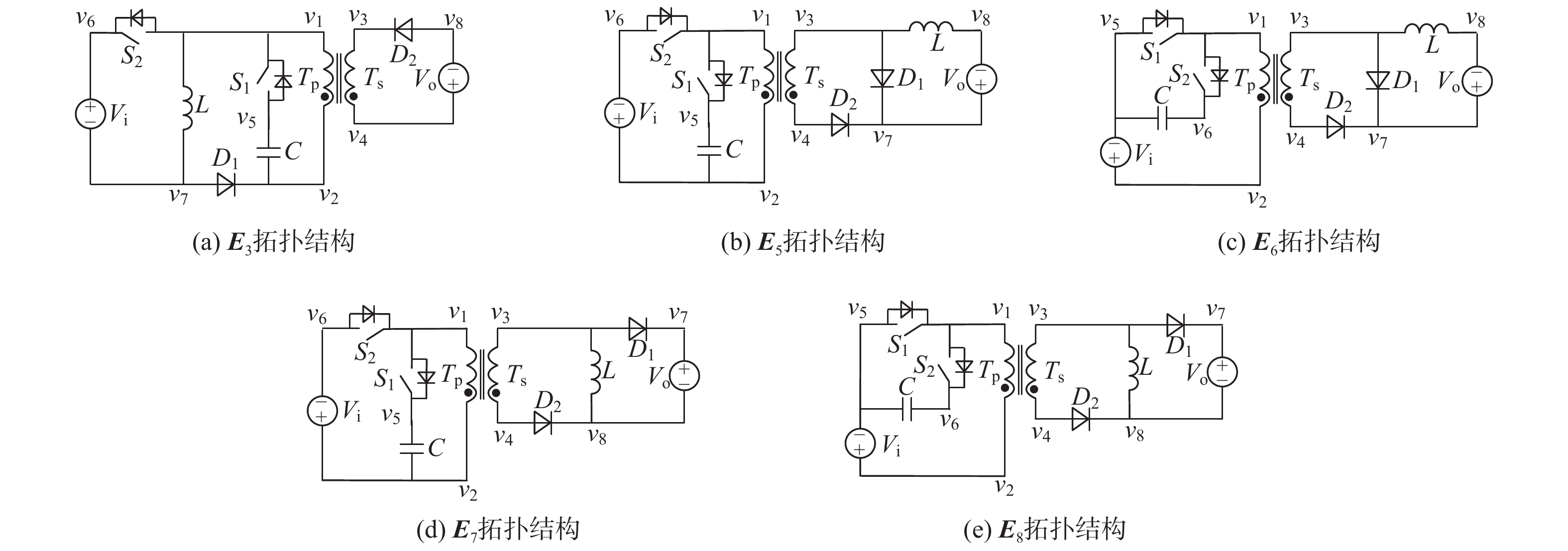

图 10 有源钳位正激变换器的5种拓扑结构

Figure 10. 5 topologies of active clamp forward converters

下载: 全尺寸图片幻灯片

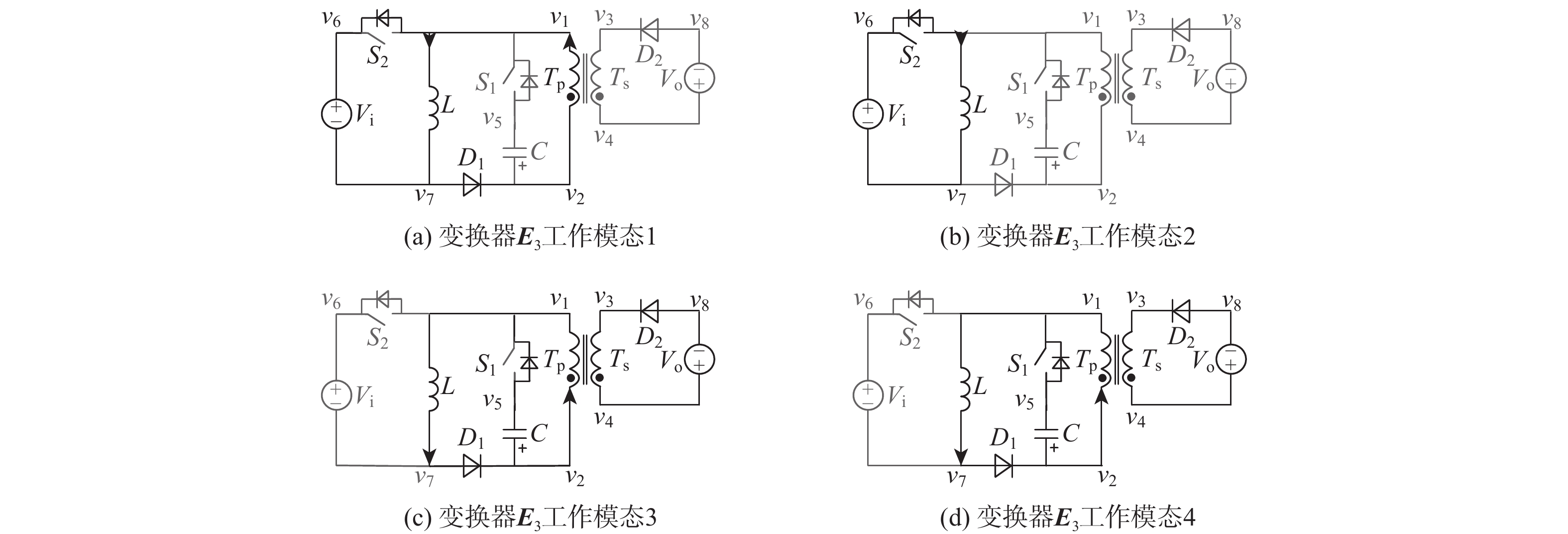

图 11 有源钳位升降压正激变换器E₃的工作模态

Figure 11. Working mode of active clamp Buck-Boost forward converters E₃

下载: 全尺寸图片幻灯片

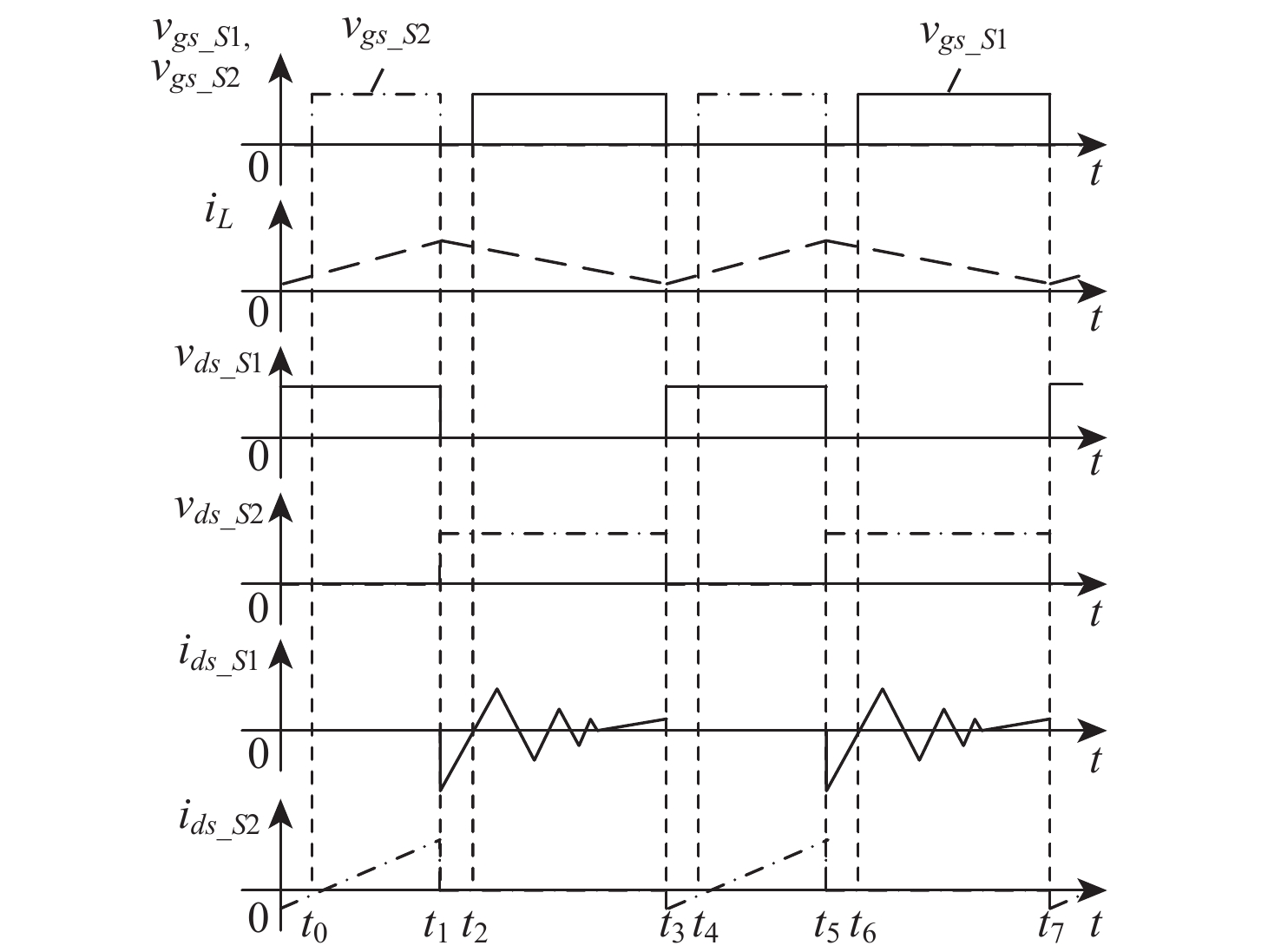

图 12 变换器理论波形

Figure 12. Theoretical waveform of converter

下载: 全尺寸图片幻灯片

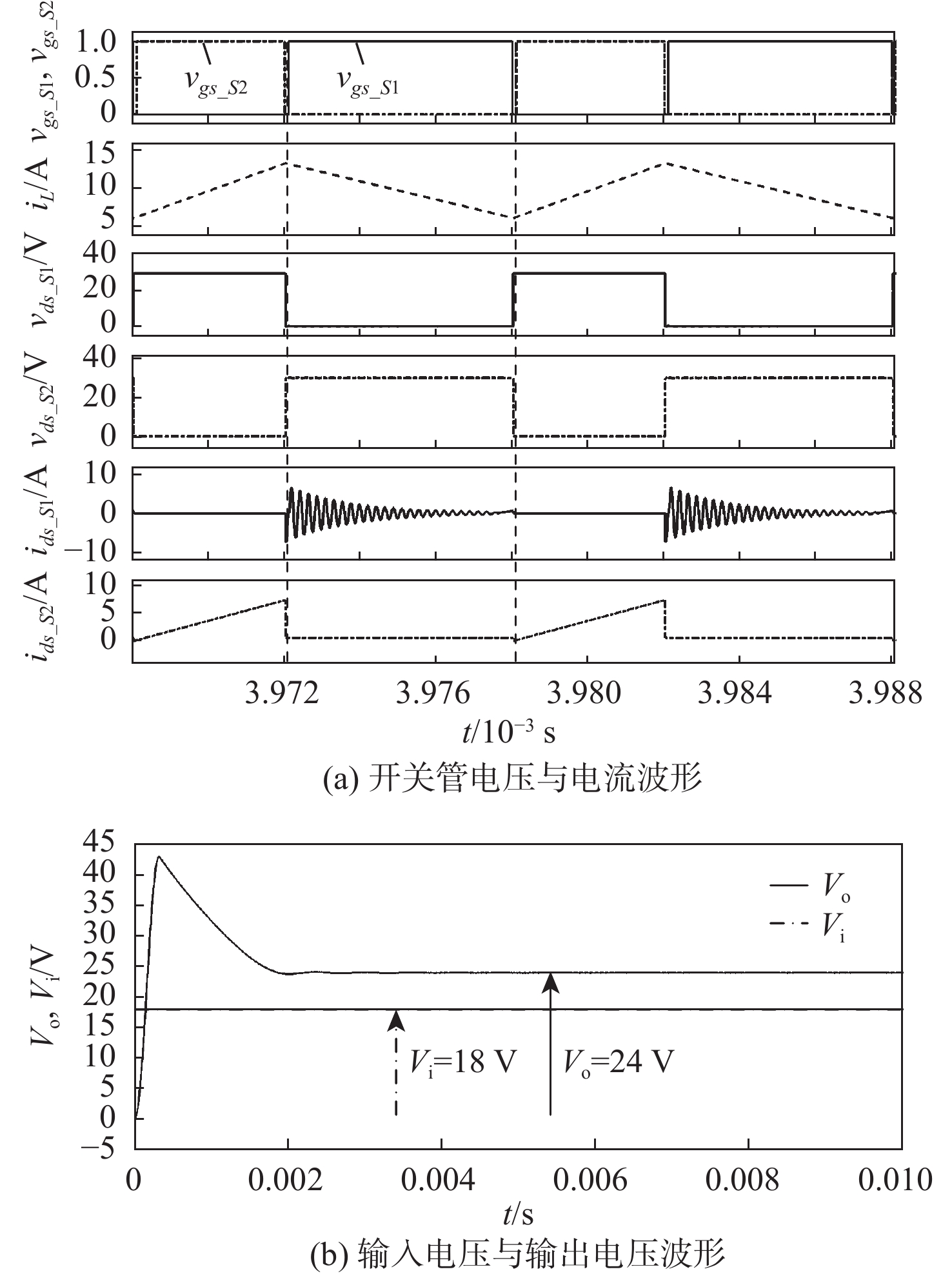

图 13 图10(a)拓扑仿真结果

Figure 13. simulation results of topology in Fig.10(a)

下载: 全尺寸图片幻灯片

87 种正激变换器拓扑的部分电路图

Partial circuit diagram of 87 types of forward converter topologies

下载: 全尺寸图片幻灯片

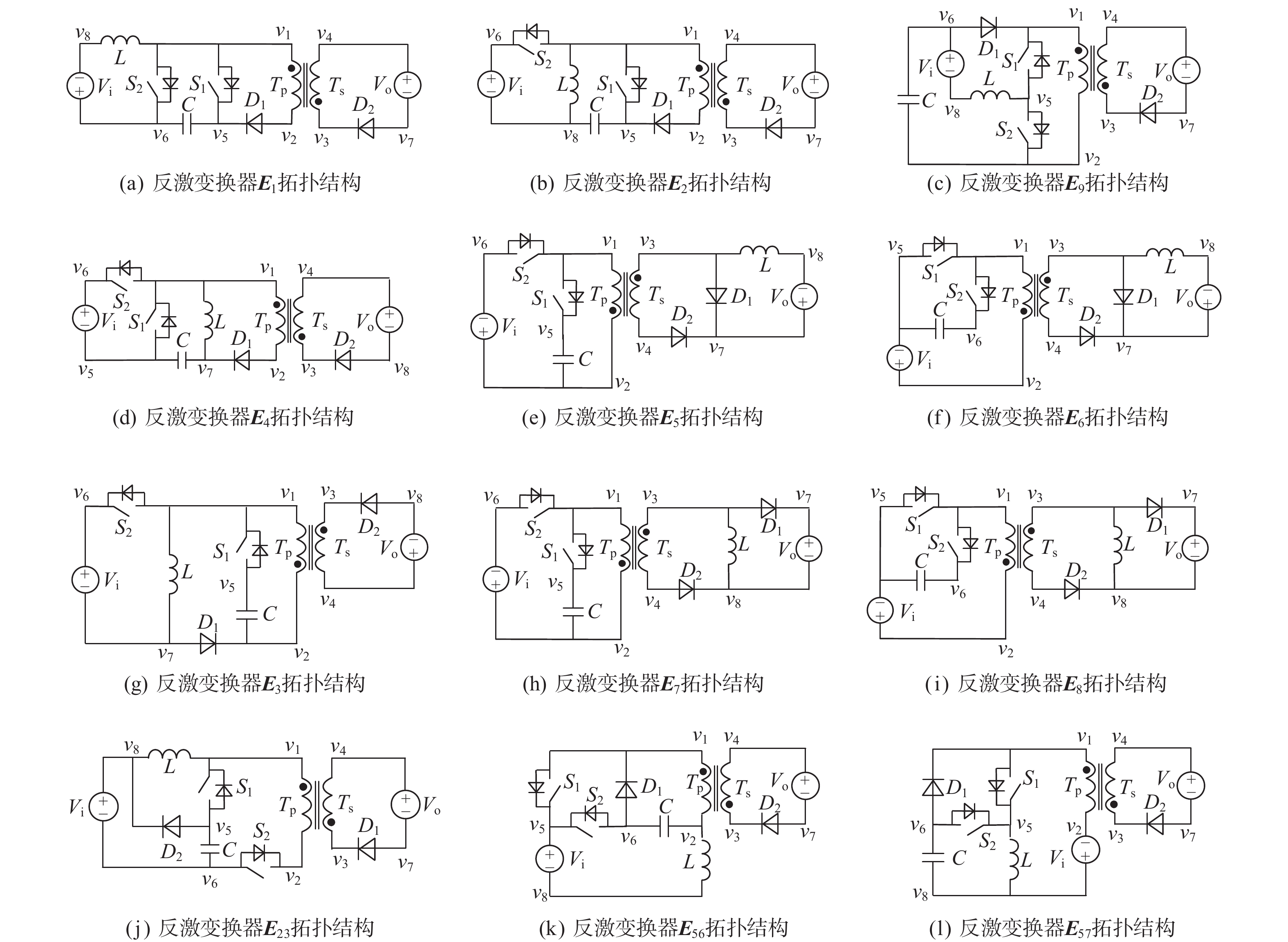

97 种反激变换器拓扑的部分电路图

Partial circuit diagram of 97 types of flyback converter topologies

下载: 全尺寸图片幻灯片

表 1 双顶点对变压器模型

Table 1. Two-vertex-pair transformer model

器件	双顶点对	模型
变压器	T=(T_p,T_s)=(v_i1,v_j1,v_j2,v_i2)

下载: 导出CSV

表 2 变压器在正激变换器和反激变换器中的模型

Table 2. Transformer model in forward converters and flyback converters

变压器	双顶点对	同名端位置	变压器模型	变压器工作情况
正激变换器	T=(T_p,T_s)=(v_i1,v_j1,v_j2,v_i2)	v_i1,v_i2	模态1
正激变换器	T=(T_p,T_s)=(v_i1,v_j1,v_j2,v_i2)	v_i1,v_i2	模态2
反激变换器	T=(T_p,T_s)=(v_i1,v_j1,v_j2,v_i2)	v_i1,v_j2	模态1
反激变换器	T=(T_p,T_s)=(v_i1,v_j1,v_j2,v_i2)	v_i1,v_j2	模态2

下载: 导出CSV

表 3 仿真参数

Table 3. Simulation parameters

参数	数值
输入电压V_i/V	18
输出功率P_o/W	24
开关频率f_s/kHz	100
电感L/μH	10
励磁电感L_m/μH	100
输出电压V_o/V	24
占空比D	0.4
变压器匝数比N₁∶N₂	1∶2
电容C/μF	1
输出电容C_o/μF	100

下载: 导出CSV
