| Citation: | LI J P，JIN W Y，ZHAO Y D，et al. Unexpected electric breakdown control and thermal characteristics of ion thruster shell[J]. Journal of Beijing University of Aeronautics and Astronautics，2025，51（3）：865-873 （in Chinese） doi: 10.13700/j.bh.1001-5965.2023.0162
|

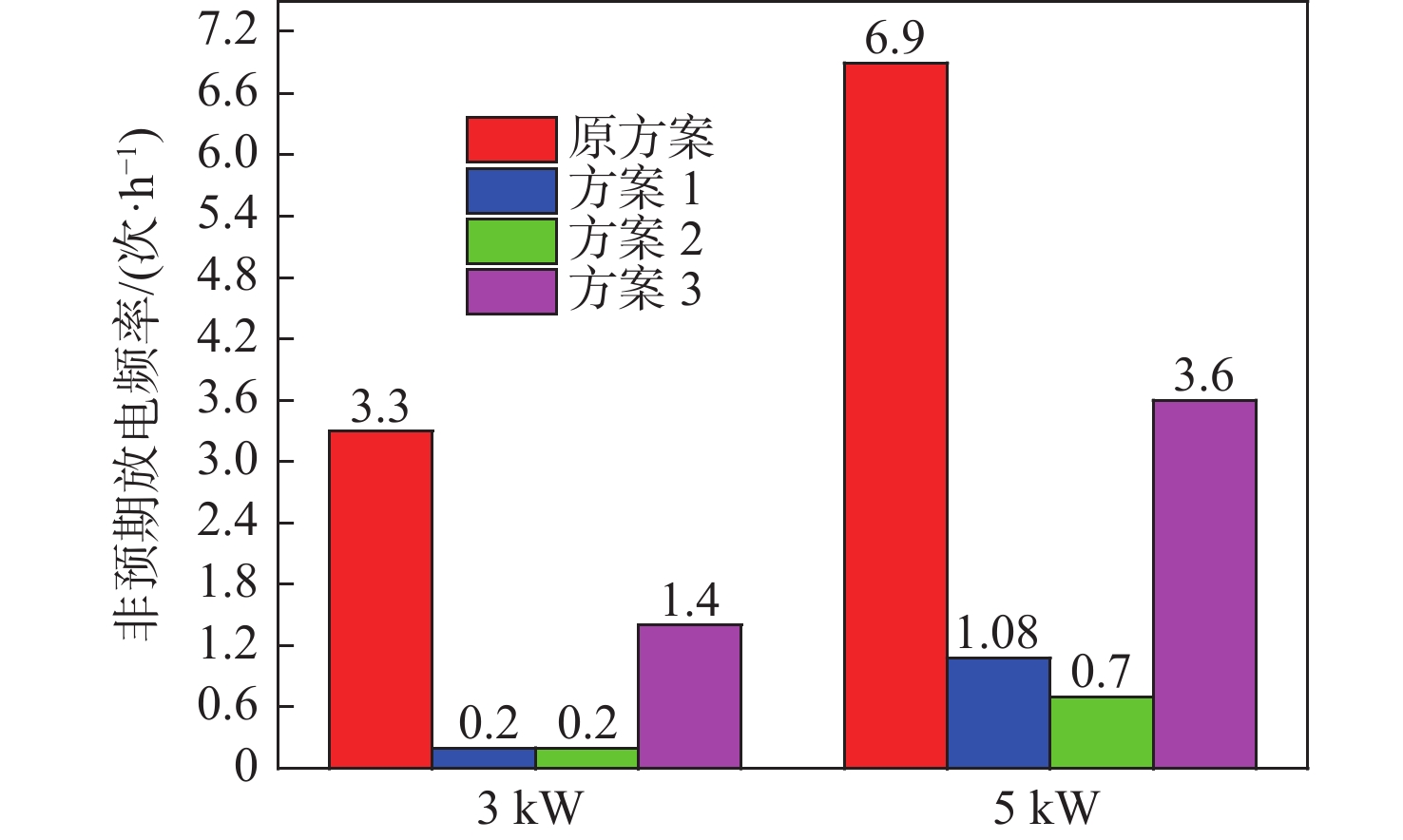

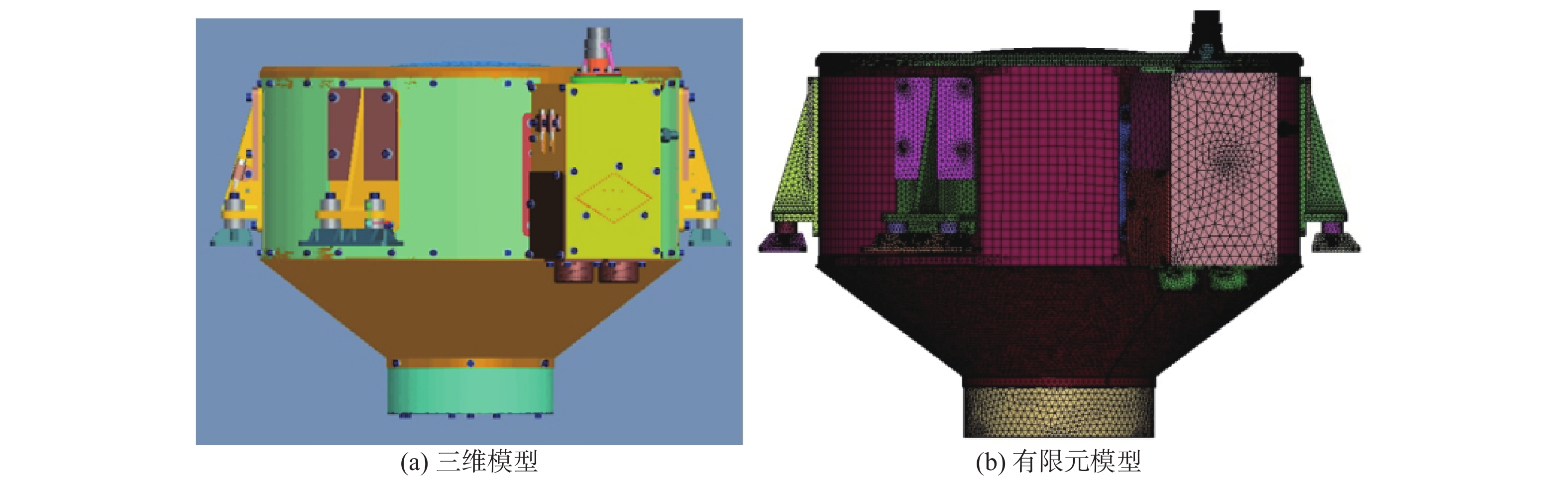

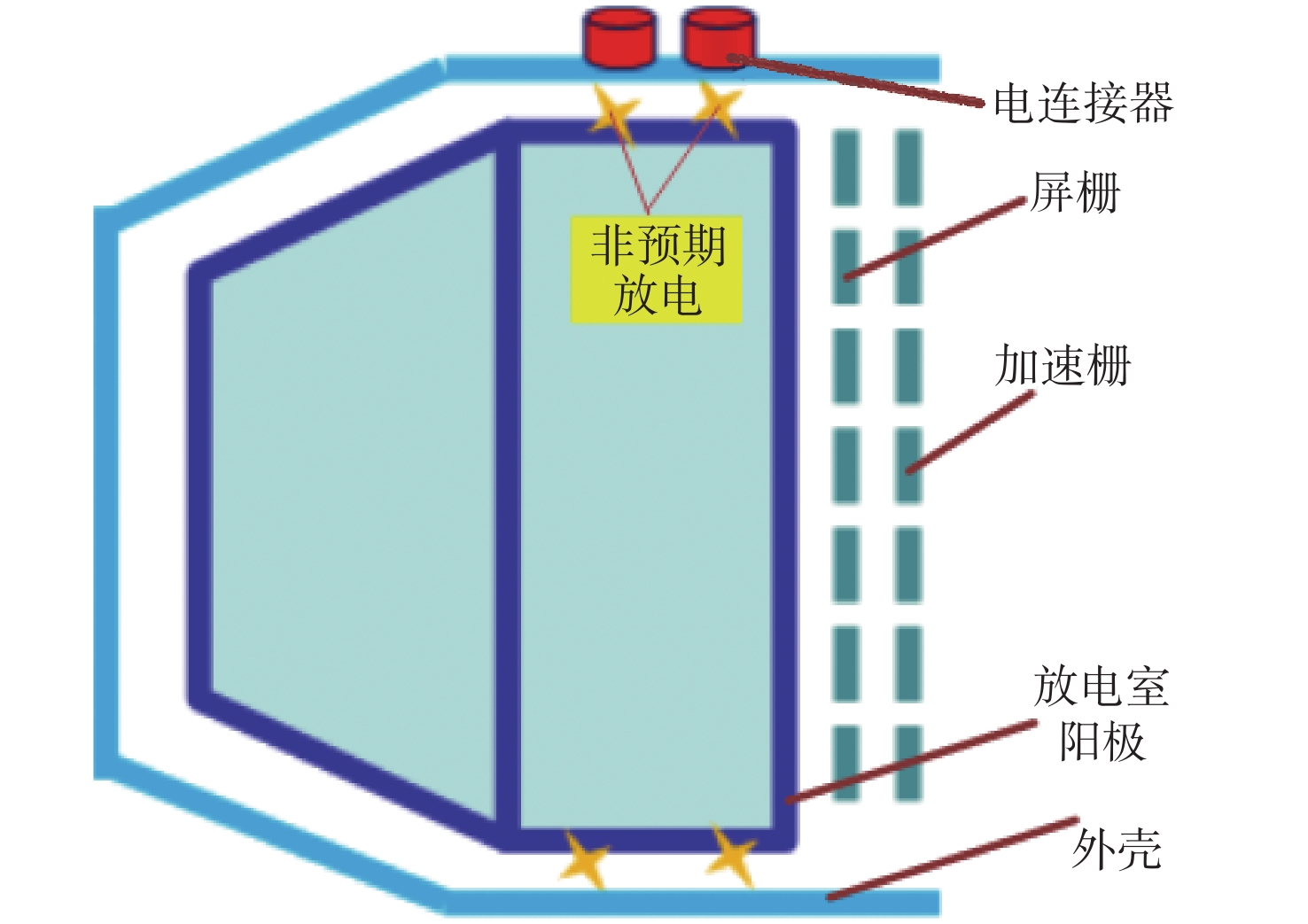

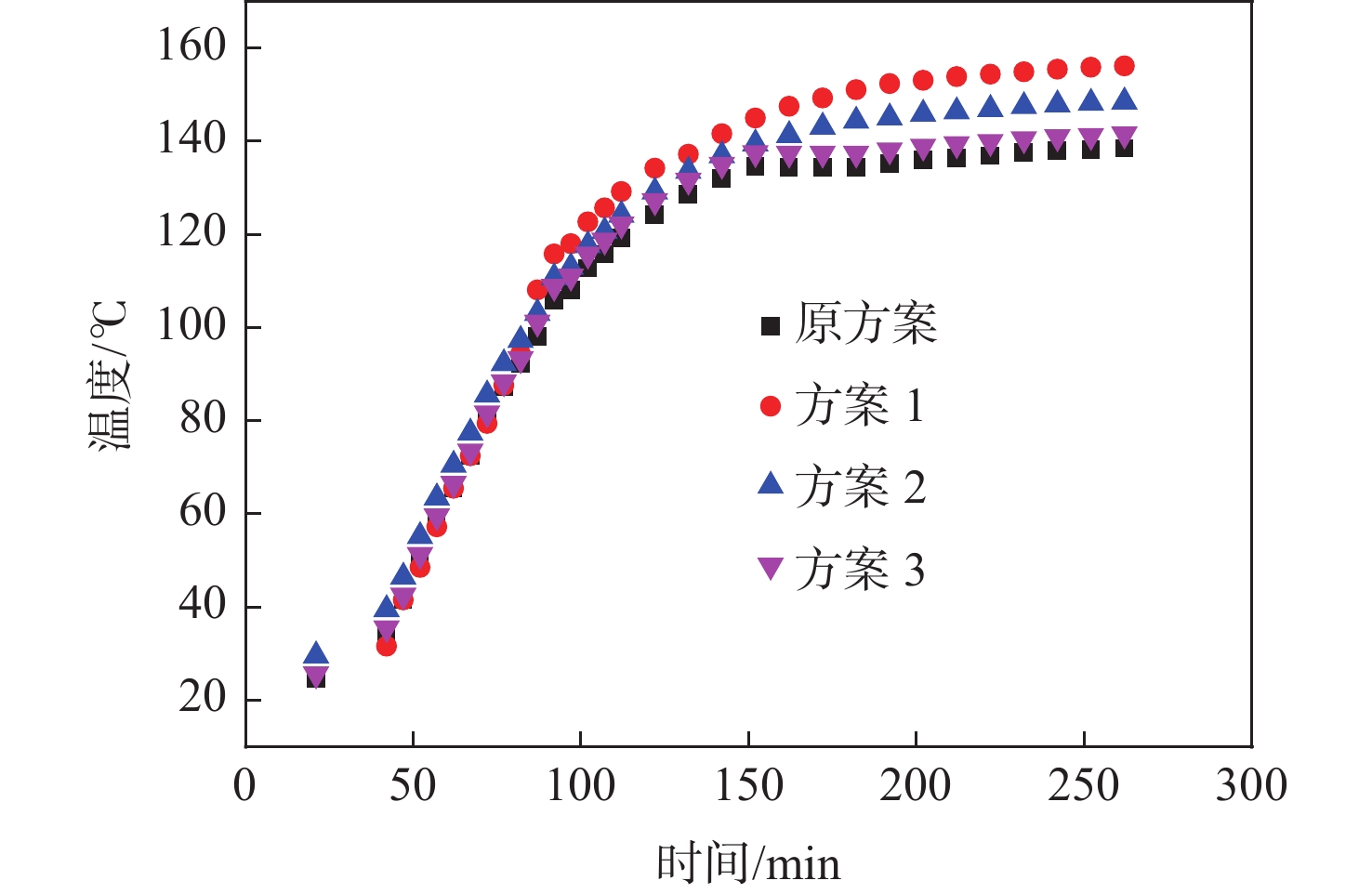

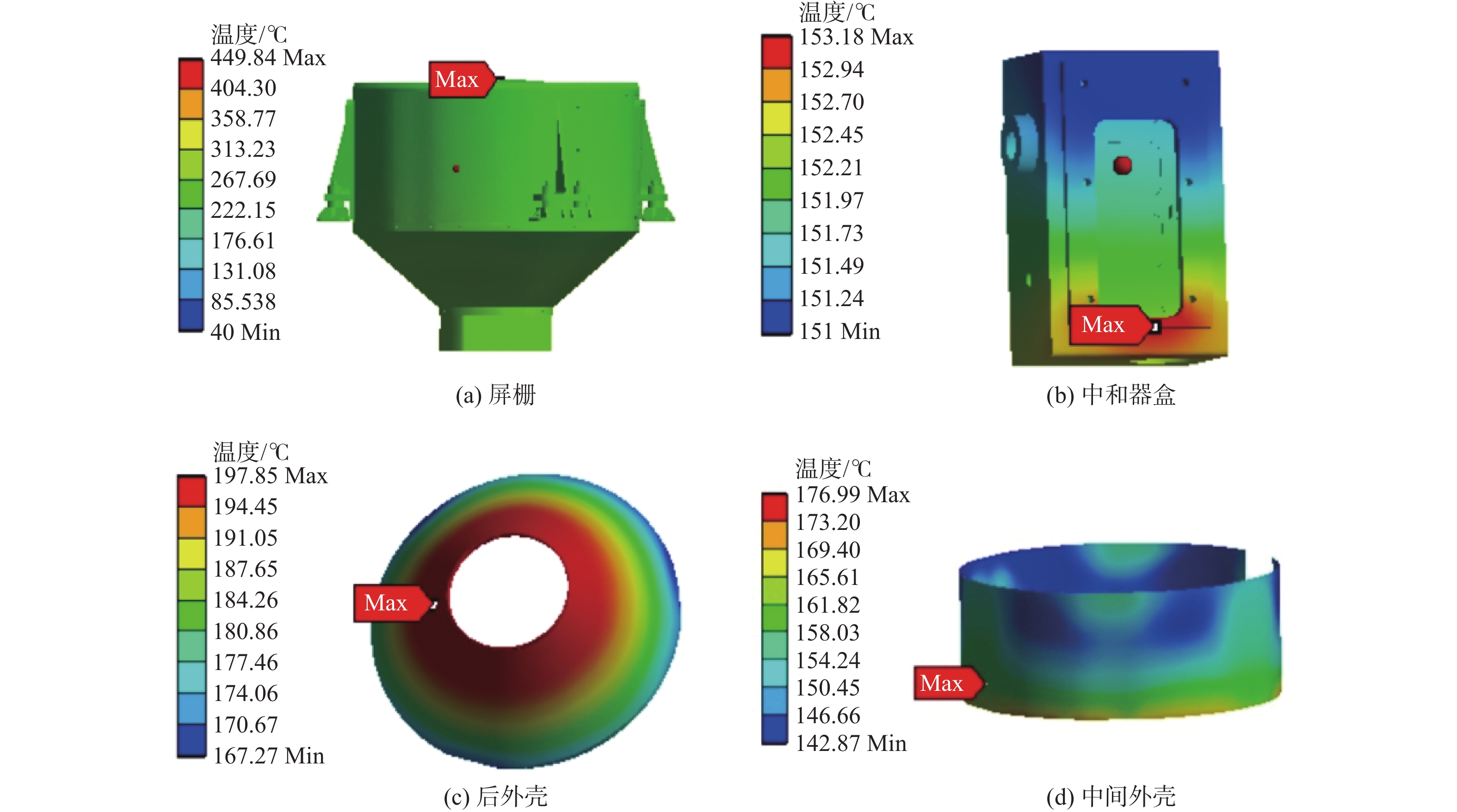

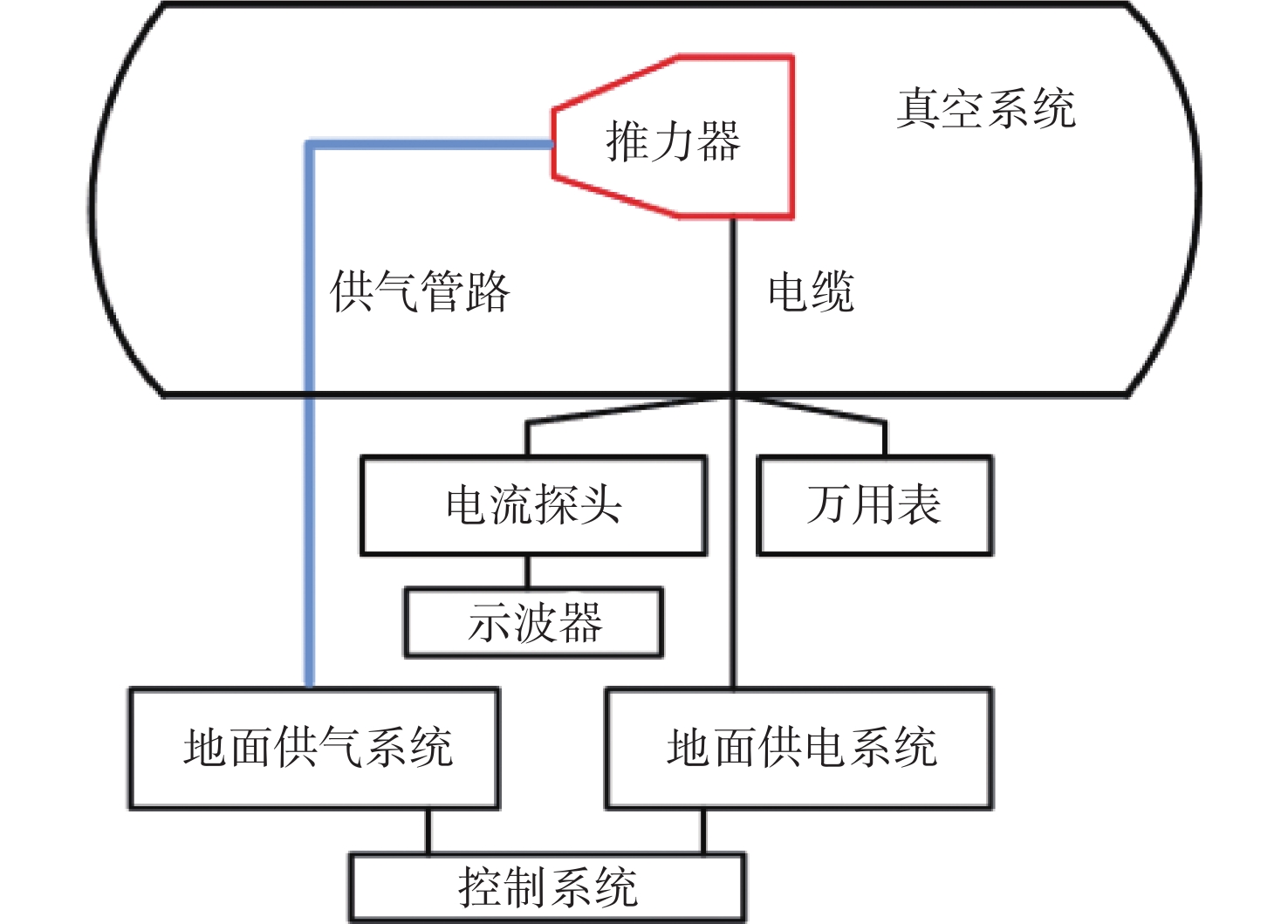

Unexpected breakdowns of ion thrusters affect their reliability in engineering applications. In order to reduce the frequency of unexpected electric breakdown between shell and screen grid of the thruster, the unexpected breakdown mechanism was clarified through theoretical analysis and experimental methods. By considering the thermal design and the elimination of unexpected electric breakdowns, the shell optimization design and thermal characteristic analysis of three schemes were carried out. A shell scheme verification and heat balance test system was built. The results show that the frequency of unexpected electric breakdowns is significantly higher at high power than at low power. After the single-sided anodized shell on the inner surface is adopted, the frequency of unexpected electric breakdowns of the thruster is reduced from 6.90 times/h before optimization to 0.70 times/h under 5 kW working condition and from 3.3 times/h before optimization to 0.20 times/h under 3 kW working condition. The maximum temperature measured at the electrical connector is 148.5 ℃, meeting the application requirements. The effect of different shell schemes on the temperature change of the thermally sensitive assembly is small, with a temperature difference within 5 ℃, and the maximum error of the thruster temperature test and thermal analysis is less than 10 ℃.
| [1] |
李建鹏, 张天平, 赵以德, 等. 阳极电流和屏栅电压对5kW离子推力器性能的影响[J]. 推进技术, 2021, 42(6): 1435-1440.
LI J P, ZHANG T P, ZHAO Y D, et al. Effects of anode current and screen grid voltage on performance of 5kW ion thruster[J]. Journal of Propulsion Technology, 2021, 42(6): 1435-1440(in Chinese).
|
| [2] |
GOEBEL D M, KATZ I. Fundamentals of electric propulsion ion and Hall thrusters[M]. Hoboken: Wiley, 2008.
|
| [3] |
AHMED L N, CROFTON M W. Surface modification measurements in the T5 ion thruster plume[J]. Journal of Propulsion and Power, 1998, 14(3): 336-347. doi: 10.2514/2.5302
|
| [4] |
RAWLIN V, SOVEY J, HAMLEY J, et al. An ion propulsion system for NASA’s deep space missions[C]// Space Technology Conference and Exposition. Reston: AIAA, 1999.
|
| [5] |
PATTERSON M J, VERHEY T R. A 5kW xenon ion thruster lifetest[C]//International Electric Propulsion Conference Florida. Reston: AIAA, 1990.
|
| [6] |
OHMICHI W, KUNINAKA H. Performance degradation of a spacecraft electron cyclotron resonance neutralizer and its mitigation[J]. Journal of Propulsion and Power, 2014, 30(5): 1368-1372. doi: 10.2514/1.B35062
|
| [7] |
HERMAN D, SOULAS G, PATTERSON M. Performance evaluation of the prototype-model NEXT ion thruster[C]//Proceedings of the 43rd AIAA/ASME/SAE/ASEE Joint Propulsion Conference & Exhibit. Reston: AIAA, 2007.
|
| [8] |
MARTINEZ R A, WILLIAMS J D. Electric field breakdown characteristics of carbon-based ion optics[C]//Proceedings of the 29th International Electric Propulsion Conference. Reston: AIAA, 2005.
|
| [9] |
李建鹏, 靳伍银, 赵以德, 等. 离子推力器外壳非预期放电抑制实验研究[J]. 推进技术, 2023, 44(4): 264-271.
LI J P, JIN W Y, ZHAO Y D, et al. Experimental study of unexpected breakdown reduction of ion thruster housings[J]. Journal of Propulsion Technology, 2023, 44(4): 264-271(in Chinese).
|
| [10] |
SHASTRY R,HERMAN D A, SOULAS G C, et al. Status of NASA’s Evolutionary Xenon Thruster(NEXT) long duration test as of
|
| [11] |
VAN NOORD J L. Lifetime assessment of the next ion thruster[C]//Proceedings of the 43rd AIAA/ASME/SAE/ASEE Joint Propulsion Conference & Exhibit. Reston: AIAA, 2007.
|
| [12] |
WALLACE N, MUNDY D, FEARN D, et al. Evaluation of the performance of the T6 ion thruster[C]//Proceedings of the 35th Joint Propulsion Conference and Exhibit. Reston: AIAA, 1999.
|
| [13] |
CLARK S, RANDALL P, LEWIS R, et al. Bepicolombo-solar electric propulsion system test and qualification approach[C]//Proceedings of the 36th International Electric Propulsion Conference. Reston: AIAA, 2019.
|
| [14] |
KUNINAKA H, SHIMIZU Y, YAMADA T, et al. Flight report during two years on HAYABUSA explorer propelled by microwave discharge ion engines[C]//Proceedings of the 41st AIAA/ASME/SAE/ASEE Joint Propulsion Conference & Exhibit. Reston: AIAA, 2005.
|
| [15] |
KUNINAKA H, NISHIYAMA K, FUNAKI I, et al. Powered flight of HAYABUSA in deep space[C]//Proceedings of the 42nd AIAA/ASME/SAE/ASEE Joint Propulsion Conference & Exhibit. Reston: AIAA, 2006.
|
| [16] |
MARTINEZ R, WILLIAMS J, GOEBEL D. Electric field breakdown properties of materials used in ion optics systems[C]//Proceedings of the 42nd AIAA/ASME/SAE/ASEE Joint Propulsion Conference & Exhibit. Reston: AIAA, 2006.
|
| [17] |
SCHWIRZKE F R. Vacuum breakdown on metal surfaces[J]. IEEE Transactions on Plasma Science, 2002, 19(5): 690-696.
|
| [18] |
SILI E, CAMBRONNE J P, KOLIATENE F. Temperature dependence of electrical breakdown mechanism on the left of the paschen minimum[J]. IEEE Transactions on Plasma Science, 2011, 39(11): 3173-3179. doi: 10.1109/TPS.2011.2165969
|
| [19] |
PEJOVIC M M, RISTIC G S, KARAMARKOVIC J P. Electrical breakdown in low pressure gases[J]. Journal of Physics D: Applied Physics, 2002, 35(10): R91-R103. doi: 10.1088/0022-3727/35/10/201
|
| [20] |
ANDERS A. Breakdown of the high-voltage sheath in metal plasma immersion ion implantation[J]. Applied Physics Letters, 2000, 76(1): 28-30. doi: 10.1063/1.125645
|
| [21] |
李宗良, 高俊, 刘国西, 等. 小行星探测电推进系统方案研究[J]. 深空探测学报, 2018, 5(4): 347-353.
LI Z L, GAO J, LIU G X, et al. Study on the electric propulsion system for asteroid detection[J]. Journal of Deep Space Exploration, 2018, 5(4): 347-353(in Chinese).
|
| [22] |
李建鹏, 靳伍银, 赵以德. 加速电压和阳极流率对离子推力器性能的影响[J]. 物理学报, 2022, 71(1): 172-179.
LI J P, JIN W Y, ZHAO Y D. Influence of acceleration grid voltage and anode flow rate on performance of ion thruster[J]. Acta Physica Sinica, 2022, 71(1): 172-179(in Chinese).
|
| [23] |
孙明明, 张天平, 陈娟娟, 等. LIPS-200离子推力器热特性模拟分析研究[J]. 强激光与粒子束, 2014, 26(8): 252-257.
SUN M M, ZHANG T P, CHEN J J, et al. Thermal analysis of LIPS-200 ion thruster[J]. High Power Laser and Particle Beams, 2014, 26(8): 252-257(in Chinese).
|
Figures(11) / Tables(6)
